Refractory Anchors for Boilers & Furnaces | High-Temp Stainless Steel
Refractory anchors are engineered components designed to anchor refractory materials including:
Castables
Monolithic linings
Ceramic fiber modules
in high-temperature industrial applications. Manufactured from heat-resistant stainless steel alloys (304, 310S, 253MA), they provide critical resistance against:
✅ Extreme thermal cycling (up to 1150°C)
✅ Chemical corrosion in harsh environments
✅ Mechanical abrasion during operation
Essential for industrial furnaces, power plant boilers, and thermal processing equipment requiring reliable refractory retention systems.
Material Science Innovation
Our anchors leverage advanced metallurgy to solve critical challenges:
| Failure Mode | Solution | Material Benefit |
|---|
| Thermal deformation | Optimized V/Y geometries | 253MA alloy maintains integrity at 1100°C+ |
| Corrosion pitting | 310S chromium-nickel matrix | 25% Cr resists sulfidation in flue gases |
| Abrasive wear | Work-hardened surfaces | 40% increased hardness vs standard anchors |
Refractory Anchor Products

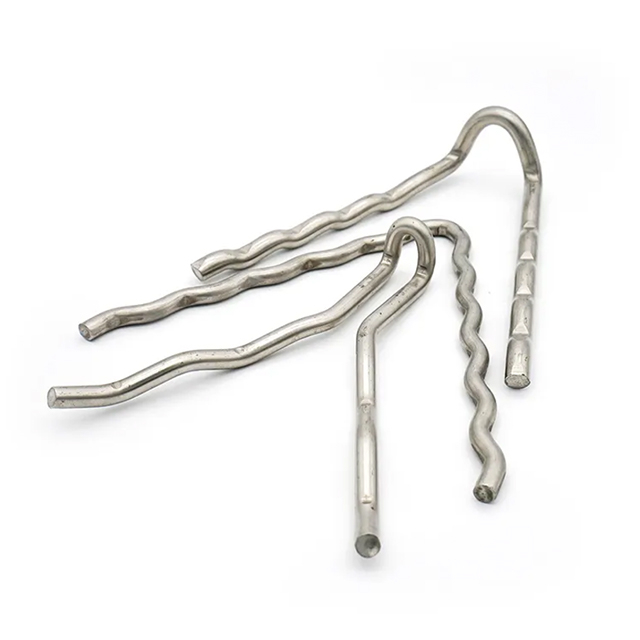

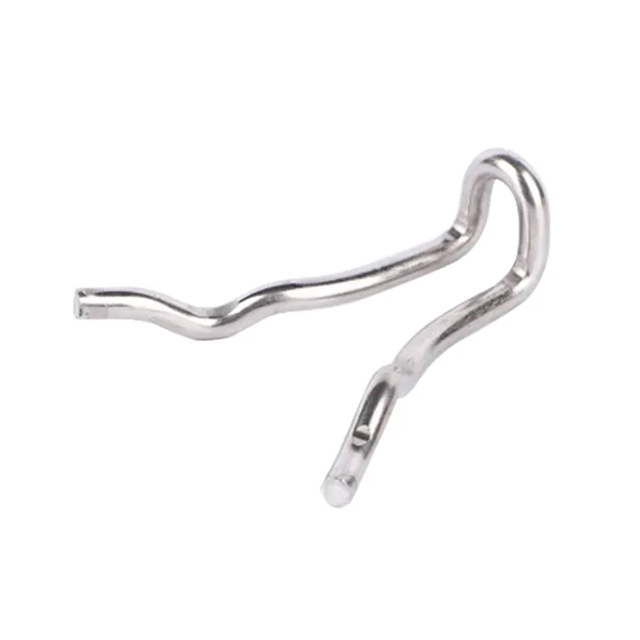

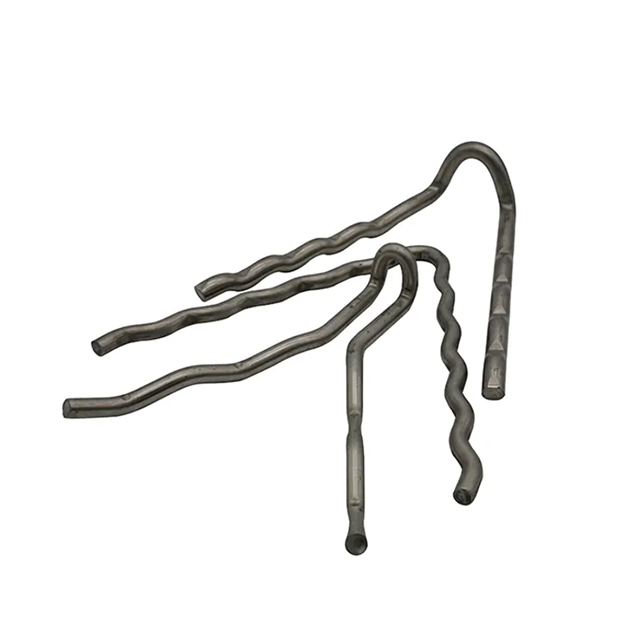

V-Shaped Refractory Anchors (304S, 310S, 253MA)
Optimized for boiler refractory linings. Max temp: 1100°C. Standard lengths: 75-300mm.

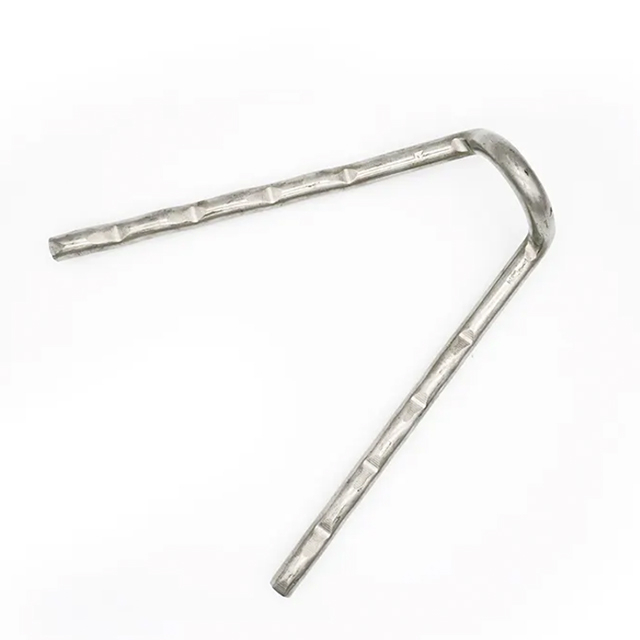

U & W Pattern Refractory Support Anchors (304, 310S)
High-load capacity anchors for furnace walls. Corrosion-resistant up to 1150°C.
Round Pattern V-Type Anchors for Castable Linings (310S)
Reinforced design for cement castables. 310S grade for oxidation resistance.
Material Certificates
Industrial Applications
Core Implementation Areas:
Electric Power Plant Boilers
Industrial Furnaces
Specialized Equipment
Anchor Type Selection Guide
Optimized Installation Protocols
| Anchor Type | Best Application | Technical Advantage | Spacing Guidelines |
|---|
| V-Type | Castable linings | Uniform stress distribution | 150-200mm spacing |

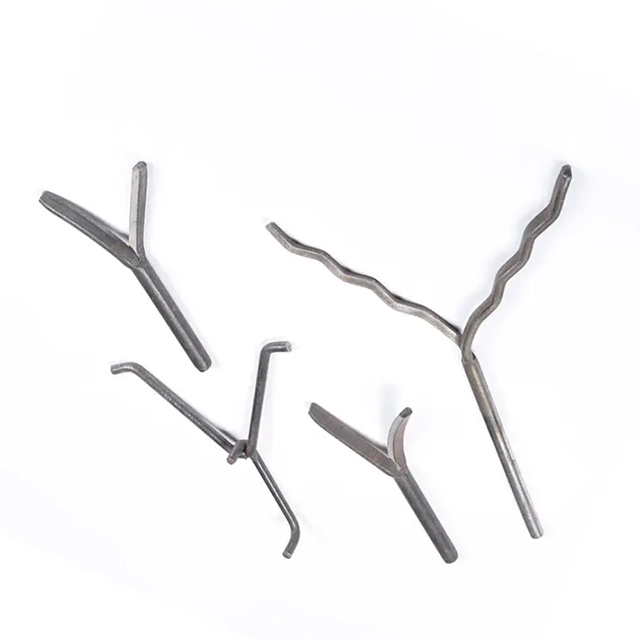

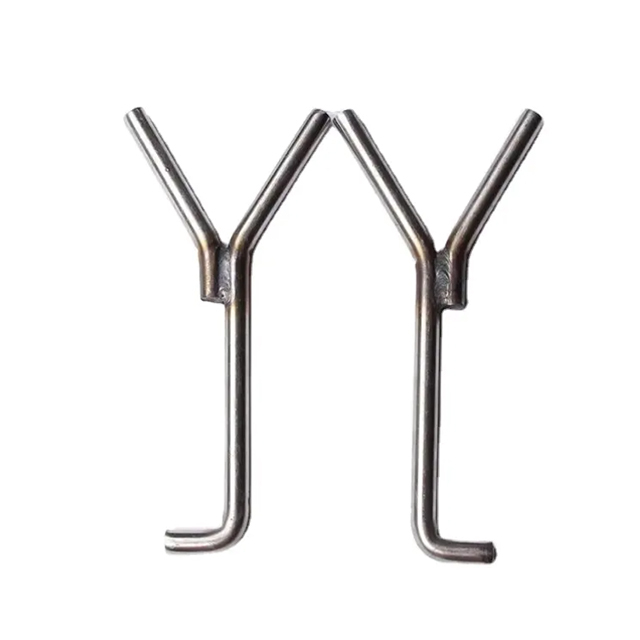

| Y-Type | Boiler pressure parts | High-velocity gas resistance | 120-180mm spacing |
| T-Type | Ceramic fiber modules | 40% faster installation | 200-250mm spacing |
| U/W-Type | Furnace walls/roofs | Maximum load capacity | 100-150mm spacing |
Compliance: ASTM C862 and EN 1094-7 refractory anchoring standards
Material Specifications
High-Performance Alloys
| Grade | Max Temp | Yield Strength | Key Applications |
|---|
| 304SS | 870°C | 205 MPa | Low-corrosion environments |
| 310S | 1150°C | 310 MPa | Oxidizing atmospheres |
| 253MA | 1100°C | 400 MPa | Cyclic thermal shock applications |
Industrial Implementation
Optimized Installation Protocols
For maximum performance in refractory anchoring applications:

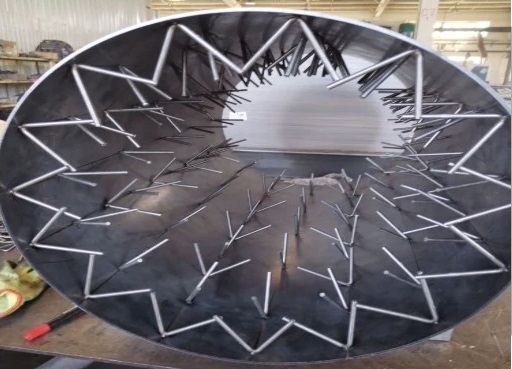

1. Castable Linings
V-type anchors at 150-200mm spacing ensure uniform stress distribution in cementitious monolithic linings.
2. Ceramic Fiber Modules
Quick-install T-anchors with 304SS speed clips reduce installation time by 40% vs welded solutions.
3. Boiler Pressure Parts
Y-shaped configurations withstand gas velocities exceeding 15m/sec in power plant boiler passes.
*All installation guidelines comply with ASTM C862 and EN 1094-7 refractory anchoring standards.
Quality Validation
Multi-Stage Verification Process
Chemical Analysis
Performance Testing
Thermal cycling (100+ cycles)
Salt-spray corrosion resistance
Abrasion resistance testing
What Customers Say?
“Our V-type anchors have demonstrated 20,000+ operational hours in 550MW supercritical boilers with zero failure incidents.”Power Plant Maintenance Director, Zhejiang Energy Group
