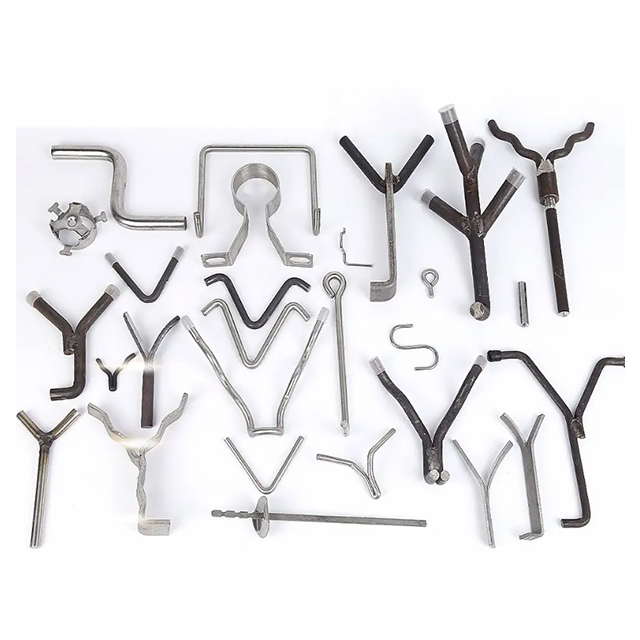

The High Quality 304/310 Stainless Steel Refractory Support Anchors are precision-engineered to securely fix refractory linings in industrial furnaces, boilers, and kilns.
Designed to resist thermal stress, vibration, and mechanical loads, these anchors maintain the stability and longevity of refractory linings under extreme operating conditions. U, W, V, and Y shaped anchors are suitable for supporting a wide range of lining materials, including castables, bricks, and monolithic refractory.
Custom manufacturing ensures that each anchor meets project-specific requirements, providing optimal performance and extended equipment life.
| Anchor Type | Shape Description | Load Capacity | Installation Ease | Thermal Stress Resistance | Best Applications | Material Thickness Range | Customization Options |
|---|---|---|---|---|---|---|---|
| U-Type Anchor | U-shaped design with rounded bends, symmetrical structure | Medium-High Good for uniform loads | Easy to install Simple welding required | Good Even stress distribution | General furnace linings Boiler walls Moderate temperature areas | 6-12mm diameter | Leg length, bend radius, surface coating |

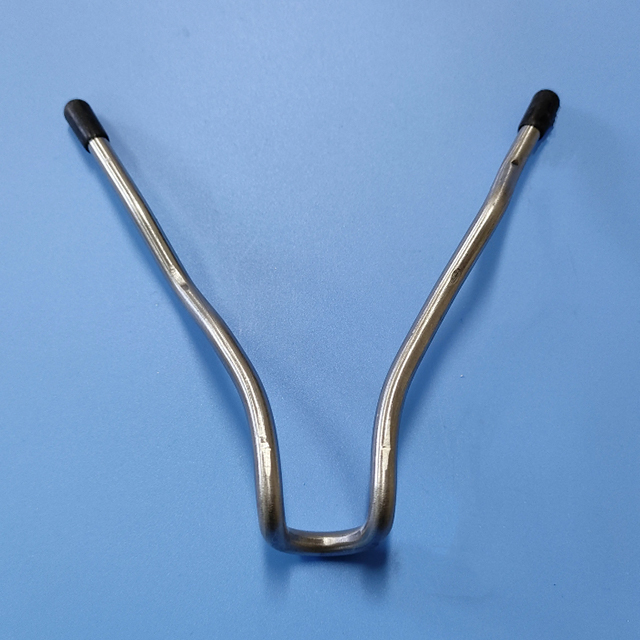

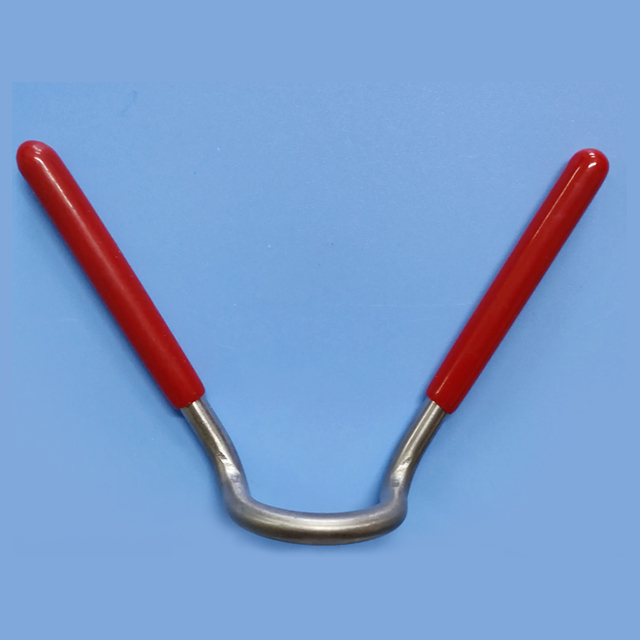

| V-Type Anchor | V-shaped with sharp angle, pointed end for better penetration | High Excellent for directional loads | Moderate Requires precise positioning | Very Good Handles thermal expansion well | High-temperature zones Refractory corners Expansion joints | 8-16mm diameter | Angle degree, point sharpness, leg spacing |

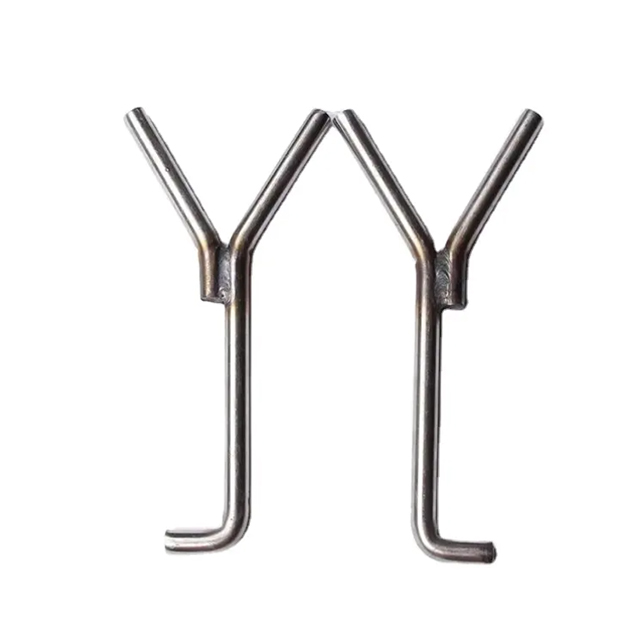

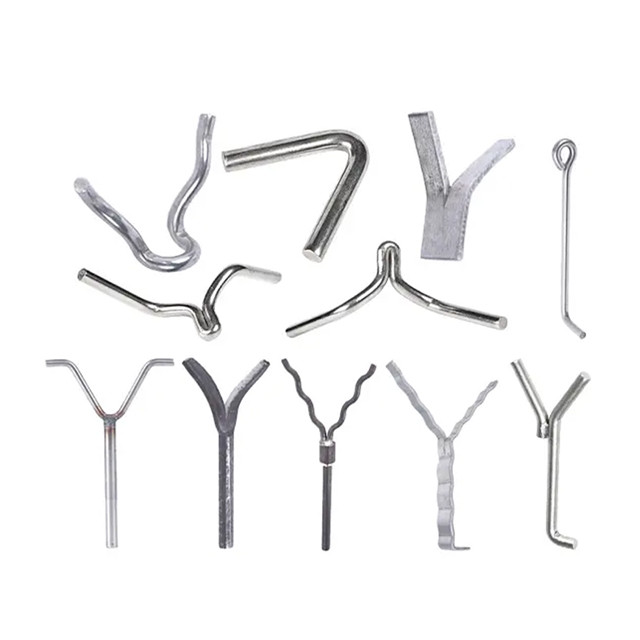

| Y-Type Anchor | Y-shaped with three contact points, triangular stability | Very High Superior multi-directional support | Moderate-Difficult Complex installation | Excellent Best for vibration resistance | Heavy-duty applications Rotary kilns High vibration areas | 10-20mm diameter | Arm length, angle variations, reinforcement options |
| W-Type (Waved) | Wavy or serpentine pattern, multiple contact points | Medium Distributed load capacity | Easy Flexible installation | Excellent Superior thermal expansion handling | Large surface areas Insulation layers Thermal cycling environments | 6-14mm diameter | Wave pattern, amplitude, frequency customization |
Standard furnace applications with moderate temperatures
Quick installation is prioritized
Budget constraints exist
High-temperature zones (above 800°C)
Precise directional support is needed
Working with complex geometries
Maximum stability and load capacity required
High vibration or mechanical stress environments
Critical safety applications
Large surface area coverage needed
Frequent thermal cycling occurs
Flexible installation requirements
We offer a comprehensive range of materials to meet diverse industrial requirements. Below is a detailed comparison of our refractory anchor materials:
| Material Type | Material Grade | Max Operating Temperature | Key Advantages | Common Applications |
|---|---|---|---|---|
| Stainless Steel | 304 Stainless Steel | 870°C (1600°F) | Excellent corrosion resistance, good formability, cost-effective | General furnace linings, boiler applications |
| 310S Stainless Steel | 1150°C (2100°F) | Superior high-temperature strength, oxidation resistance | High-temperature furnaces, kilns, severe environments | |
| 321 Stainless Steel | 925°C (1700°F) | Titanium stabilized, intergranular corrosion resistance | Welded applications, continuous high-temperature service | |
| Heat-Resistant Steel | 2520 Stainless Steel | 1200°C (2200°F) | Exceptional high-temperature performance, sulfur resistance | Extreme temperature applications, chemical environments |
| 1Cr18Ni9Ti | 900°C (1650°F) | Good mechanical properties, stable at high temperatures | Power plants, industrial boilers | |
| Carbon Steel | Q235B | 450°C (840°F) | Cost-effective, good weldability | Low-temperature applications, general industrial use |
| 20# Steel | 500°C (930°F) | Good strength and toughness | Medium temperature applications | |
| 45# Steel | 550°C (1020°F) | Higher strength, good wear resistance | Heavy-duty applications | |
| Alloy Steel | 15CrMo | 600°C (1110°F) | Good high-temperature strength, creep resistance | Pressure vessels, high-temperature piping |
| 12Cr1MoV | 650°C (1200°F) | Excellent high-temperature properties, vanadium enhanced | High-pressure boilers, superheaters |
Note: All materials can be customized in terms of size, shape (U, V, Y, Waved types), and surface treatment. Contact us for specific technical requirements.
304/310 Stainless Steel U, W, V, Y Refractory Support Anchors are used in diverse high-temperature industrial applications, including:
Industrial furnace refractory linings
Cement, steel, and lime rotary kilns
Power plant boilers and flue systems
Glass and ceramic kilns
Petrochemical and chemical plant furnaces
Thermal processing equipment
High-temperature reactors and heat exchangers
Foundry and metal casting linings
Thermal insulation support in boiler combustion chambers
Specialized projects requiring custom anchor designs for heavy-duty or thick linings
Step 1 – Material Selection: Verified 304/310 stainless steel for high-temperature applications
Step 2 – Precision Forming: Accurate U, W, V, Y geometry for optimal load distribution
Step 3 – Surface Treatment: Natural, polished, or passivated finish to enhance corrosion resistance
Step 4 – Quality Inspection: Dimensional check, material verification, and surface integrity assessment
Step 5 – Packaging & Delivery: Secured to prevent deformation during shipping
Anchor Layout: Determine spacing and depth based on lining thickness and operating temperature
Fixing/Welding: Choose method appropriate to mechanical load and thermal conditions
Orientation & Alignment: Ensure proper placement to avoid stress concentration
Thermal Expansion Allowance: Leave room for expansion to prevent cracking or spalling
Pre-Casting Inspection: Verify positioning and stability before refractory installation
Custom lengths, diameters, and shapes available
Material certificates and inspection reports upon request
Engineering support for optimal anchor selection
Suitable for single projects or bulk industrial orders
A: Stainless steel components designed to secure refractory linings in furnaces, boilers, and kilns, ensuring stability under thermal and mechanical stress.
A: U, W, V, and Y shapes for various lining thicknesses and thermal stress requirements.
A: High-temperature stainless steels 304 and 310, chosen based on application temperature and environment.
A: Yes, we provide custom lengths, diameters, and shapes based on project needs.
A: Cement, steel, glass, ceramic, petrochemical, power plants, and chemical industries.
A: 310 stainless steel anchors can reliably withstand temperatures up to ~1150°C.
