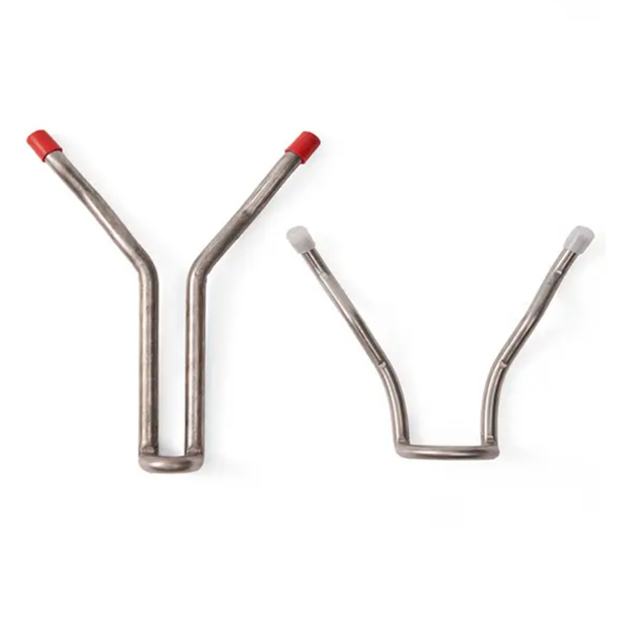

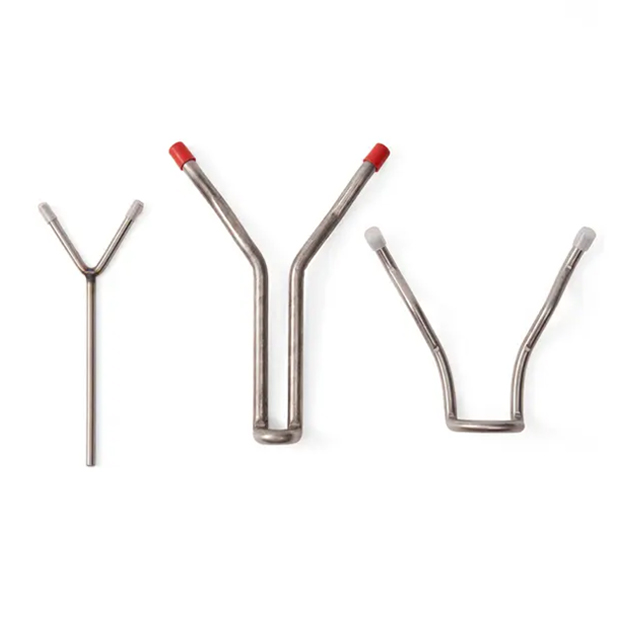

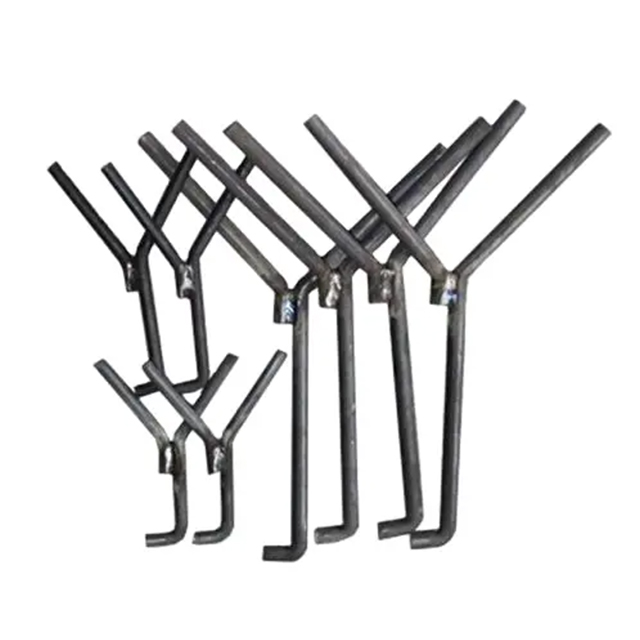

The Y V Shaped Stainless Steel Refractory Anchor is a high-temperature fixing component designed to securely fasten refractory linings to furnace walls, boilers, and kilns.
Manufactured from 304S, 310S, and 253MA stainless steel, this anchor provides excellent resistance to heat, oxidation, and thermal cycling in demanding industrial environments.
Its optimized Y and V combined geometry allows controlled movement during thermal expansion while maintaining strong mechanical support, helping prevent cracking, spalling, and premature failure of refractory linings.
304S Stainless Steel – suitable for moderate high-temperature refractory systems
310S Stainless Steel – excellent oxidation resistance up to approximately 1150°C
253MA Stainless Steel – superior creep strength and resistance to thermal shock and sulfur-containing atmospheres
Y-shaped structure improves tensile strength and load distribution
V-shaped configuration helps absorb thermal expansion stress
Enhances overall stability of the refractory lining system
High chromium and nickel content ensures long service life
Suitable for aggressive furnace and boiler atmospheres
Stable under repeated heating and cooling cycles
Compatible with various refractory castables and bricks
| Parameter | Description |
|---|---|
| Product Type | Y V Shaped Refractory Anchor |
| Material Grades | 304S / 310S / 253MA Stainless Steel |
| Temperature Resistance | Up to 1150–1200°C (depending on material) |
| Size Range | Custom sizes available |
| Surface Finish | Natural / Polished / Passivated |
| Manufacturing Process | Precision forming and quality inspection |
304S Stainless Steel
A cost-effective choice for standard refractory linings with stable operating temperatures.
310S Stainless Steel
Ideal for high-temperature furnaces requiring excellent oxidation and scaling resistance.
253MA Stainless Steel
Recommended for extreme thermal cycling, sulfur-rich environments, and long-term high-temperature operation.
Our technical team can assist in selecting the most suitable material based on your working conditions.
Material Performance Comparison
| Material | Max Temp | Key Advantages | Typical Applications |
|---|---|---|---|
| 304S | ~870°C | Cost-effective, good corrosion resistance | Standard furnaces, light-duty linings |
| 310S | ~1150°C | Excellent oxidation & scaling resistance | High-temperature furnaces & boilers |
| 253MA | ~1200°C | Superior creep strength & thermal shock resistance | Severe thermal cycling environments |
Selecting the right material improves refractory lining life and reduces maintenance cost.
Y V Shaped Stainless Steel Refractory Anchors are widely used across industries that require secure and durable refractory lining installation in high-temperature environments:
Fixing castables and refractory bricks
Ensures thermal stability and prevents lining spalling
Supports refractory linings in flues, combustion chambers, and superheaters
Maintains structural integrity under high thermal stress
Stabilizes refractory lining during rotation and thermal cycling
Reduces wear and extends lining service life
Holds high-temperature refractory materials in place
Prevents deformation and cracking of kiln linings
Secures heavy-duty refractory linings in preheaters, calciners, and blast furnaces
Improves operational safety and efficiency
Anchors refractory linings in high-temperature reactors, heat exchangers, and incinerators
Resists chemical attack and thermal expansion
Tailored solutions for unique high-temperature or high-stress environments
Material and shape customization available to fit specific project requirements
Our Y V Shaped Stainless Steel Refractory Anchors are manufactured using carefully controlled forming and inspection processes to ensure consistent quality and reliable performance in high-temperature environments.
Stainless steel grades: 304S / 310S / 253MA
Chemical composition and mechanical properties verified
Materials suitable for high-temperature refractory applications
Controlled bending and shaping to achieve accurate Y & V geometry
Consistent dimensions for reliable anchoring performance
Natural finish, polishing, or passivation
Improved oxidation and corrosion resistance
Dimensional accuracy check
Visual inspection for surface integrity
Material verification before delivery
Secure packaging to prevent deformation during transport
Ready for industrial project installation
Proper anchor spacing and embedment depth are essential for refractory stability
Welding or fixing method should match furnace design and operating temperature
Allowance for thermal expansion should be considered to avoid lining damage
Technical installation guidance is available upon request.
Determine anchor spacing based on furnace structure and lining thickness
Consider operating temperature and thermal expansion
Select fixing or welding method suitable for service temperature
Ensure stable and consistent weld quality
Maintain correct embedment depth
Ensure proper anchor orientation to avoid stress concentration
Leave sufficient movement space for high-temperature expansion
Prevent cracking or spalling of refractory lining
Verify anchor positioning and fixing strength
Confirm readiness before refractory casting or lining installation
Detailed installation guidance and project-specific recommendations are available upon request.
We offer:
Custom lengths, diameters, and anchor shapes
Material certificates and quality inspection reports
OEM and project-specific solutions
Stable supply for bulk and long-term industrial projects
Proven high-temperature stainless steel materials
Strict quality control from raw material to finished product
Engineering support for refractory system design
Competitive pricing and reliable global delivery
A refractory anchor is a metal fixing component used to securely attach refractory linings to furnace walls, boilers, and kilns. It is designed to withstand high temperatures, thermal expansion, vibration, and mechanical stress.
Y and V shaped anchors help distribute loads evenly and allow controlled movement during thermal expansion. This reduces stress concentration and improves the durability of refractory linings.
For high-temperature environments, 310S and 253MA stainless steel are commonly recommended due to their excellent oxidation resistance, creep strength, and thermal stability.
Yes. Refractory anchors can be custom manufactured in different sizes, shapes, and materials according to project requirements and operating conditions.
They are widely used in industrial furnaces, boilers, rotary kilns, cement plants, steel mills, petrochemical facilities, and other high-temperature processing equipment.
