Choosing the right support system for industrial linings determines the lifespan of your furnace or kiln. When we look at how stainless steel refractory anchors compare to ceramic alternatives, we aren't just looking at materials. We are looking at mechanical survival under extreme stress. This guide breaks down every technical nuance to help you decide which system fits your high-temperature environment.
Refractory linings are heavy, brittle, and subject to intense thermal cycling. Without a reliable anchoring system, these linings would collapse under their own weight or crack due to thermal expansion. The primary debate in modern engineering centers on stainless steel refractory anchors versus ceramic anchors.

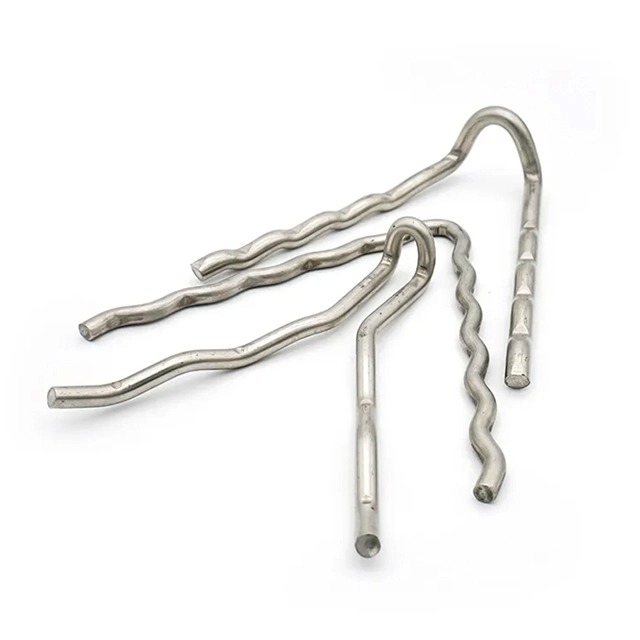

Stainless steel refractory anchors, often fabricated in V shape or Y type configurations, offer incredible ductility and ease of installation. They are the backbone of monolithic linings like castables and plastic refractories. On the other hand, ceramic anchors (or "scutching" tiles) are designed for environments where even the most robust 316L or 310 alloys would melt.
Understanding this comparison requires looking at thermal limits, chemical corrosion, and mechanical attachment methods. Whether you are lining a petrochemical heater or a cement kiln, the "best" anchor depends on your specific high temperature threshold and the chemical makeup of your furnace atmosphere.
The most immediate difference between these two systems is their "melting point" vs. their "working limit." Metal anchors don't just melt; they lose structural integrity long before they turn liquid.
Stainless steel refractory anchors rely on chromium and nickel content to resist oxidation. For most industrial applications, 304 grade is a baseline, but it struggles once temperatures exceed 800°C. This is where 310 (25% Chromium, 20% Nickel) becomes the industry standard. It maintains a protective oxide scale that prevents the metal from "burning away" in high temperature zones up to 1100°C (approx. 2000°F).
If your environment involves heavy moisture or acidic gasses during cool-down periods, we often recommend 316L for its superior pitting resistance. However, even the best stainless steel refractory anchors face a hard ceiling around 1200°C. Beyond this, the metal softens too much to hold the weight of the refractory.
Ceramic anchors are essentially made of high-alumina materials. They don't have a "softening" point like metal. They can remain rigid up to 1600°C or higher. While they handle the heat better, they are brittle. If the furnace vibrates or the lining shifts quickly, a ceramic anchor might snap, whereas stainless steel refractory anchors would simply bend.
Feature | Stainless Steel (310/316L) | Ceramic Anchors |
|---|---|---|
Max Service Temp | 1100°C - 1150°C | 1600°C+ |
Ductility | High (Bends under stress) | Zero (Brittle/Snaps) |
Thermal Conductivity | High (Conducts heat to shell) | Low (Insulates shell) |
Installation Speed | Fast (Welding) | Slow (Mechanical Interlock) |
The geometry of stainless steel refractory anchors is engineered to maximize "grip" within the castable lining while allowing for the metal’s thermal expansion. Ceramic anchors, by contrast, are usually bulky blocks with "C-clips" or metal hangers.

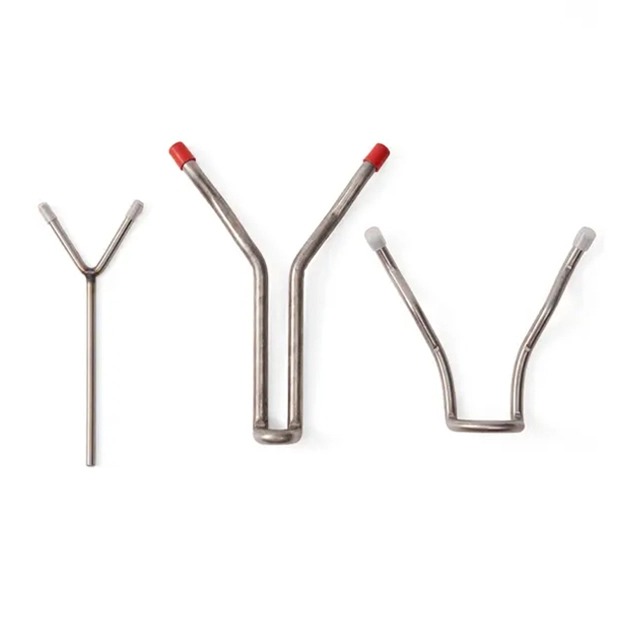

Most stainless steel refractory anchors utilize a V shape to provide two points of contact within the refractory. This design is excellent for thinner linings where space is limited. The Y type anchor is a more heavy-duty variation. It features a central stem and branched arms, providing a deeper mechanical bond.
When we install these, we don't just weld them and pour cement. Because stainless steel refractory anchors expand more than the surrounding ceramic castable, we often coat the tips with plastic or wax. When the furnace first heats up, this coating melts, creating a tiny gap. This allows the high temperature metal to expand without cracking the brittle lining.
Ceramic anchors don't come in a simple V shape. They are typically rectangular or corrugated tiles. To hold them in place, you need a metal "scissor" or "pendant" that attaches the ceramic piece to the furnace shell. This creates a multi-part system that is more prone to installation error than a single-piece stainless steel refractory anchor.
In the world of refractory engineering, stress comes from two places: gravity and heat. Stainless steel refractory anchors are the masters of managing mechanical stress, while ceramics excel at thermal isolation.
Imagine a large industrial kiln rotating. The refractory lining experiences constant shifting. Stainless steel refractory anchors are ductile. They can absorb these micro-movements. A 310 or 316L anchor will flex slightly as the furnace shell deforms. This flexibility prevents the anchor from pulling out of the refractory.
This is the biggest headache for engineers. Ceramic anchors expand at a rate very similar to the refractory lining itself. This means they stay "in sync." Stainless steel refractory anchors, however, expand significantly faster. If you use a 304 grade anchor without proper expansion caps in a high temperature setting, it will act like a wedge and split the lining from the inside out.
Metal: Can support high loads per square inch because of its tensile strength.
Ceramic: Must be thicker to support the same weight because it has poor tensile strength (though high compressive strength).
Temperature isn't the only killer of anchors; chemistry is. The choice between stainless steel refractory anchors and ceramic often comes down to the fuel being burned.
In coal-fired power plants or waste-to-energy facilities, the atmosphere is full of sulfur and chlorine. Even high temperature alloys like 310 can suffer from "sulfidation." Sulfur penetrates the grain boundaries of the metal and turns it into a crumbly mess. In these specific cases, 316L might be used for lower-temp zones with high moisture, but for the hottest zones, ceramics are the only way to avoid chemical rot.
Stainless steel refractory anchors stay alive by forming a "skin." This chromium-oxide layer is what makes 304 grade and 310 stainless. If the furnace atmosphere is "reducing" (low oxygen), this skin can't form, and the metal disappears much faster. Ceramic anchors are already oxides, so they are immune to this type of atmospheric degradation.
Oxidizing Atmosphere: 310 Stainless Steel (Excellent)
Reducing Atmosphere: Ceramic (Best), Metal (Risky)
High Sulfur: Ceramic (Best), 316L (Moderate)
Alkali Attack: Ceramic (Depends on Alumina content), Metal (Good)
Time is money during a furnace shutdown. This is where stainless steel refractory anchors usually win the battle.
You can weld stainless steel refractory anchors directly to the steel casing using a stud welding gun or manual arc welding. A single worker can install hundreds of V shape anchors in a shift. Because they are lightweight, shipping and handling costs for 310 or 304 grade anchors are relatively low.
Installing ceramic anchors is a slow, manual process. You have to:
Weld a metal hanger to the shell.
Slide the ceramic anchor onto the hanger.
Secure it with a pin or clip.
Carefully pack the refractory around it so you don't snap the ceramic head.
While stainless steel refractory anchors are cheaper to buy and install, if you have to replace them every 12 months because the temperature is too high, they become expensive. Conversely, a ceramic anchor system might last 5 years in a high temperature kiln, making the initial high cost a better long-term investment.
In many modern industrial designs, we don't choose just one. We use both. This is common in "zoning."
In the cooler sections of a boiler or furnace (the "backup" or "insulation" layers), 304 grade or 316L stainless steel refractory anchors are used because they are economical. In the "hot face" (the layer directly touching the flame or molten metal), engineers might specify 310 anchors or transition to ceramic anchors for the final few inches of the lining.
Some systems use a metal stainless steel refractory anchor (like a Y type) that ends in a socket. A small ceramic tip is then placed into that socket. This gives you the welding ease of metal with the heat resistance of ceramic at the point where the temperature is highest.
Let's look at specific scenarios where stainless steel refractory anchors are the undisputed champions.
In cement kilns or rotating dryers, the constant movement makes ceramic anchors too risky. The ductility of a 310 V shape anchor ensures that even if the lining cracks, the anchor won't shatter.
If a patch of refractory falls out and you need a 24-hour turnaround, you cannot wait for custom-sized ceramic tiles. You can grab 304 grade or 310 wire, bend it into a Y type shape on-site, weld it, and cast.
For linings under 4 inches thick, ceramic anchors are simply too bulky. They take up too much volume within the refractory, creating weak spots. Stainless steel refractory anchors are thin and provide high surface area for the castable to grip without displacing too much material.
Only if your temperature stays below 800°C. Above that, 304 grade will oxidize rapidly, leading to "anchor rot" and total lining failure. For high temperature zones, 310 is non-negotiable.
V shape anchors are easier to manufacture and weld. They work perfectly for most standard castable applications. Y type anchors are usually reserved for thicker, heavier linings where a deeper "root" is needed.
Not for heat. 316L is better for corrosion (like acids and water). For pure high temperature strength, 310 outperforms 316L significantly.
When your internal furnace temperature consistently exceeds 1250°C. At that point, any stainless steel refractory anchors will lose their structural "spring" and will eventually fail to hold the weight of the wall.
At Leader Steel, we understand that a furnace is only as strong as its smallest component. We operate a world-class manufacturing facility specialized in the production of high-performance stainless steel refractory anchors. Our factory is equipped with advanced CNC bending machines and automated welding stations, ensuring that every V shape or Y type anchor we produce meets exact engineering tolerances.
We don't just sell metal; we provide thermal solutions. Our technical team has decades of experience working with various alloys, from standard 304 grade to specialized 310 and 316L compositions. We pride ourselves on our rapid response times and our ability to customize anchor designs for unique high temperature industrial challenges. When you partner with us, you are gaining access to a factory that prioritizes material purity and structural integrity, ensuring your refractory linings stay secure for years to come.
In the battle of stainless steel refractory anchors vs. ceramic, the winner is determined by your operating environment. If you need speed, flexibility, and reliability under 1100°C, a high-quality 310 or 316L anchor is the professional choice. If you are pushing the boundaries of physics in a 1500°C kiln, ceramics are your only path. By understanding the mechanical limits and chemical needs of your facility, you can choose the anchoring system that ensures safety and maximizes uptime.
