In the high-intensity world of industrial processing, heat isn't the only enemy. Many systems, like fluid catalytic cracking units (FCCUs) or cement kilns, face a dual threat: extreme temperatures and relentless mechanical wear. This is where Refractory Abrasion Anchors come into play. These specialized components serve as the "skeleton" for refractory linings, ensuring that the protective material stays attached to the steel shell while resisting the scouring force of moving particles.
Think of them as heavy-duty reinforcements. Without the right Refractory Abrasion Anchors, your lining would simply crumble or peel away under the stress of thermal expansion and physical impact. In this guide, we will dive deep into what these anchors are, why they matter, and how to choose the best ones for your specific industrial environment.
To understand Refractory Abrasion Anchors, we first need to look at the environment they live in. In many reactors, gas or liquid carries abrasive particles at high speeds. This creates a "sandblasting" effect on the interior walls. Standard anchors might hold the refractory in place, but they often fail if they aren't designed to handle this specific type of mechanical stress.
Refractory Abrasion Anchors are engineered to secure thin or thick linings—often hexmetal or specialized mesh—in areas where erosion is a major concern. They provide a mechanical bond between the refractory material and the vessel wall. Unlike standard studs, these heavy duty anchors are often shaped to create a "locking" mechanism that prevents the refractory from vibrating loose.
The primary job of these anchors is to manage thermal expansion. Metal and refractory expand at different rates. If the anchor is too rigid, it snaps. If it's too weak, it bends. Stainless steel variants are preferred because they offer the right balance of ductility and strength. By using a V shape or Y type configuration, engineers can ensure the lining survives thousands of thermal cycles without losing its grip.
When you use high-quality Refractory Abrasion Anchors, you aren't just buying metal; you are buying uptime. Every time a lining fails, the plant must shut down for repairs. This costs millions in lost production. By installing high temperature anchors specifically designed for abrasion resistance, companies extend the interval between maintenance cycles significantly.
Choosing the right material for Refractory Abrasion Anchors is a science. You cannot simply use mild steel in a furnace. The environment is usually corrosion resistant and chemically aggressive. Most industry leaders rely on specific grades of stainless steel to get the job done.
Grade | Primary Characteristic | Best Use Case |
|---|---|---|
SS304 | Standard corrosion resistant | Low-temperature abrasive zones |
SS310 | High temperature oxidation resistance | High-heat zones like kilns |
SS316 | Enhanced chemical resistance | Acidic or marine-adjacent plants |
Inconel 601 | Extreme heat and abrasion | Specialized chemical reactors |
At temperatures exceeding 1000°C, most metals lose their structural integrity. However, Refractory Abrasion Anchors made from specialized alloys maintain their "spring" and tensile strength. This is vital because the refractory lining relies on the anchor's tension to stay flush against the shell. If the metal softens, the lining sags, leading to "hot spots" on the exterior of the vessel.
In many cases, abrasion isn't just physical; it's chemical. Flue gases often contain sulfur or chlorine, which eat away at the metal. Our stainless steel anchors are often treated or alloyed with chromium and nickel to form a protective oxide layer. This layer prevents the "rusting out" of the anchor tips, which is the most common cause of lining "spalling" (where chunks of refractory fall off).
The geometry of Refractory Abrasion Anchors determines how well they hold the "mud" (refractory castable). There is no one-size-fits-all shape. Depending on the thickness of your lining and the speed of the abrasive particles, you might choose between several designs.

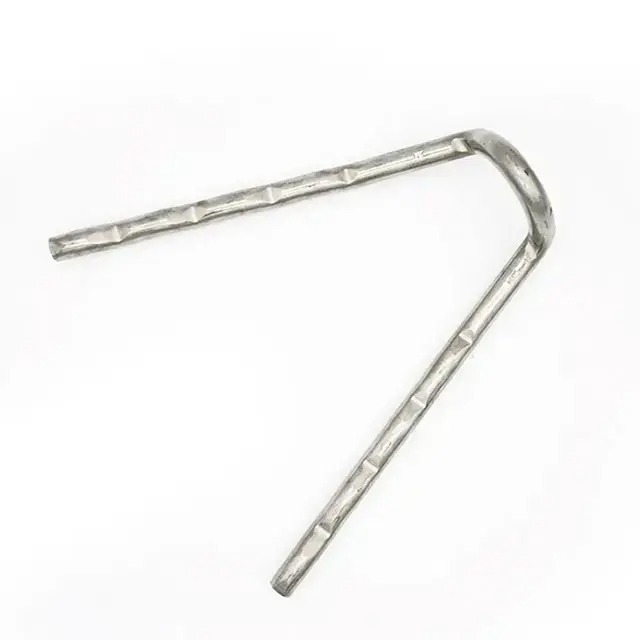

The V shape anchor is perhaps the most common. It is simple, cost-effective, and easy to weld. It works best for medium-thickness linings. The two legs of the "V" spread the load across a wider area of the refractory, reducing the chance of internal cracking.
For heavy duty applications, the Y type is often superior. It features a central stem that splits into two arms. This design allows for deeper penetration into the refractory material. It is particularly effective in high-velocity zones where the "lift" force on the refractory is greatest.
Feature | V Shape | Y Type | Hexmetal/Mesh |
|---|---|---|---|
Installation Speed | Very Fast | Moderate | Slow |
Holding Power | Good | Excellent | Superior for thin linings |
Abrasion Resistance | Moderate | High | Maximum |
Cost | Low | Moderate | High |

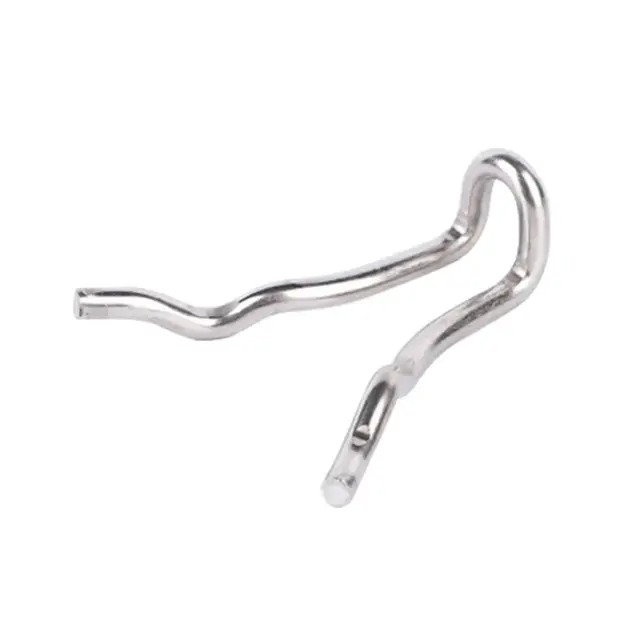

In some extreme cases, we see anchors with "waves" or "hooks" at the ends. These are designed to catch the refractory and prevent it from sliding "downhill" in vertical sections of a pipe or chimney. When dealing with Refractory Abrasion Anchors, these small design tweaks can make the difference between a lining that lasts two years and one that lasts five.
We often think of anchors just as "nails" for refractory, but Refractory Abrasion Anchors do much more. In high-abrasion environments, the anchor itself can become a point of wear. If the tip of the anchor is exposed to the flow, it will erode, eventually losing its ability to hold the lining.
Modern engineering suggests that Refractory Abrasion Anchors should be buried slightly below the surface of the refractory. Usually, the anchor tip is covered by 25mm to 50mm of material. This protects the stainless steel from direct particle impact. As the refractory surface wears down over time, the anchor remains protected for as long as possible.
"Jacking" occurs when dust and fine particles get behind the refractory lining. This creates pressure that tries to push the lining away from the steel shell. Heavy duty anchors must be strong enough to resist this outward pressure. By using corrosion resistant materials, we ensure the base of the anchor doesn't weaken, preventing the entire lining from being "jacked" off the wall.
The spacing of Refractory Abrasion Anchors is critical. If they are too far apart, the refractory will crack in the middle. If they are too close together, they create a "shear plane" where the lining can break off in a single sheet. Professional engineers use complex calculations to find the "Sweet Spot" based on the weight of the refractory and the expected vibrations of the machine.
Even the best Refractory Abrasion Anchors will fail if they are installed poorly. Proper welding is the foundation of a long-lasting lining. Since these are often high temperature applications, the weld itself must be as strong as the anchor and the shell.
Most industrial sites use Stud Welding or SMAW (Stick) welding. For stainless steel anchors being attached to carbon steel shells, special transition rods are required to prevent brittle welds. If the weld cracks, the anchor fails, and the refractory falls. It is that simple.
Step 1: Surface Prep. The steel shell must be cleaned of all rust and scale.
Step 2: Layout. Use a grid pattern to ensure even distribution of the Refractory Abrasion Anchors.
Step 3: Welding. Ensure full penetration. A "thump test" with a hammer is often used to check the integrity of the weld.
Step 4: Coating. In some cases, the anchors are coated with plastic or wax. This melts away when the furnace starts up, creating a small expansion gap for the metal to move without cracking the refractory.
One major mistake is "over-welding," which can warp the shell or cause the anchor to become brittle. Another is using the wrong alloy for the welding rod. Always match your welding consumables to the corrosion resistant properties of the anchor itself.
Every project should include a visual inspection and a mechanical bend test on a sample of the installed Refractory Abrasion Anchors. This ensures the heavy duty requirements of the plant are met before the expensive refractory castable is poured.
The cement industry is one of the most brutal environments for any hardware. Between the raw meal, the clinker, and the high-velocity gases, the abrasion is constant. Let's look at how Refractory Abrasion Anchors solve specific problems in a cement plant's cyclone dip tubes.
A major cement plant was losing its dip tube linings every 6 months. The high-velocity dust was scouring away the castable, and the standard anchors were snapping under the thermal load. They needed a high temperature solution that could handle both the heat (900°C) and the physical impact.
The plant switched to a Y type anchor made of SS310 stainless steel. They increased the anchor density and used a staggered pattern to break up the flow of particles.
Lining Life: Extended from 6 months to 18 months.
Maintenance Costs: Reduced by 40% annually.
Safety: Reduced the risk of "burn-throughs" where the shell melts due to lining loss.
Metric | Before Upgrade | After Upgrade |
|---|---|---|
Anchor Material | SS304 | SS310 |
Shape | Simple Stud | Y Type |
Failure Mode | Thermal Fatigue | Gradual Wear (Expected) |
This case proves that investing in heavy duty and corrosion resistant anchors pays for itself in reduced downtime and material savings.
The industry isn't standing still. As plants try to run hotter and faster, the demand for even better Refractory Abrasion Anchors grows. We are now seeing the rise of "Hybrid Anchors."
Some new Refractory Abrasion Anchors feature a metal base for welding but a ceramic tip for extreme heat resistance. This allows the anchor to survive in zones where even the best stainless steel would melt. While expensive, they are becoming standard in high-tech chemical incinerators.
There is even talk of "smart" anchors equipped with sensors to detect lining thickness. While still in the experimental phase, the goal is to have Refractory Abrasion Anchors that can alert operators when the lining has worn down to a dangerous level, preventing catastrophic failures.
We are also seeing better "expansion caps." These are small rubber or plastic caps placed on the tips of V shape anchors. They ensure that as the high temperature environment heats the metal, the anchor has room to grow without putting "point stress" on the refractory, which is the leading cause of internal micro-cracking.
When you are looking for Refractory Abrasion Anchors, you need a partner who understands the metallurgy and the application. At our Leader factory, we have spent decades perfecting the art of steel fabrication. We don't just "make" anchors; we engineer solutions for the toughest environments on Earth.
Our facility is equipped with the latest CNC bending and automated welding technology. This means every V shape or Y type anchor we produce is identical to the last. Consistency is key in refractory work; one weak anchor can compromise a 50-ton lining. We take our role in your supply chain seriously.
We pride ourselves on our heavy duty production capabilities. Whether you need 1,000 or 100,000 anchors, we can deliver. Our stainless steel stock is sourced from the best mills, ensuring that the corrosion resistant and high temperature properties we promise are actually delivered in the final product. When you work with Leader, you are working with a factory that values precision, speed, and technical expertise above all else. We invite you to visit our site and see our quality control processes firsthand—we are confident you won't find a more dedicated team in the industry.
Refractory Abrasion Anchors might seem like small components in a massive industrial plant, but they are the silent guardians of your equipment. From choosing the right stainless steel grade to selecting between a V shape or Y type design, every decision impacts your bottom line. By prioritizing high temperature stability and corrosion resistant properties, you ensure your plant runs safely and efficiently.
Remember, the goal isn't just to hold the refractory up; it's to keep it there through the most brutal conditions imaginable. Invest in quality, follow installation best practices, and you will see the rewards in your operational longevity.
The most common material is stainless steel, specifically grades like SS304, SS310, and SS316. These provide the necessary corrosion resistant and high temperature properties needed for industrial furnaces and reactors.
Generally, no. Refractory Abrasion Anchors undergo significant thermal stress and oxidation. Even if they look okay, their internal structure is often "fatigued." It is much safer and more cost-effective to install new heavy duty anchors during a reline.
Choose a V shape for standard, thinner linings where installation speed is a priority. Choose a Y type for heavy duty applications, thicker linings, or areas with extreme vibration and particle abrasion.
Without abrasion resistance, the moving particles in a system (like sand, cement, or catalysts) will quickly "sandblast" the refractory away. Refractory Abrasion Anchors ensure the lining stays intact even as the surface layer gradually wears down.
Anchors usually snap due to "thermal shock" or "embrittlement." If the metal isn't rated for the high temperature of the furnace, it becomes brittle over time. When the furnace cools down or heats up, the movement causes the brittle metal to break. Using the correct stainless steel alloy prevents this.
