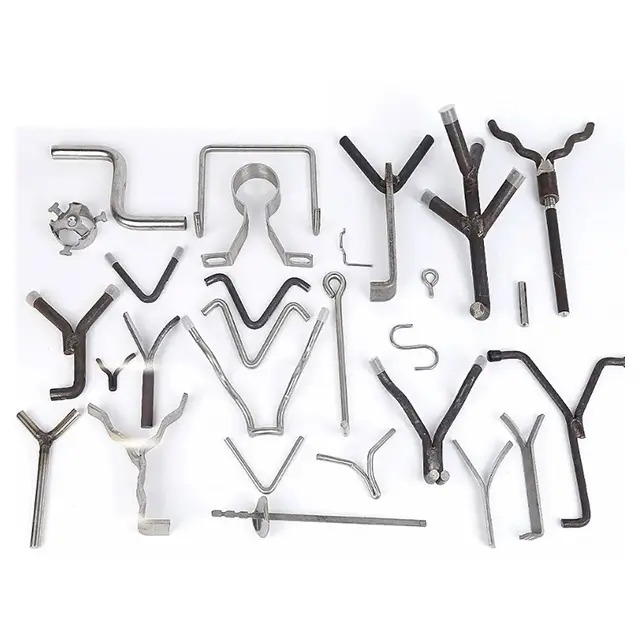

Industrial furnaces and high-heat processing units are the heart of many manufacturing plants. If these systems fail, production stops, costs skyrocket, and safety risks increase. Investing in high-quality refractory equipment isn't just a maintenance task; it is a strategic business decision. Whether you are dealing with petrochemical heaters or cement kilns, the internal lining must stay secure. This is where Refractory Anchors play a critical role. They act as the "skeleton" for the refractory lining, ensuring that heat-resistant materials stay attached to the steel shell even under extreme thermal stress. In this article, we explore three primary benefits of upgrading your equipment and how choosing the right components, such as Stainless steel supports or a V shape anchor, can transform your operational efficiency.
Every hour your furnace stays offline translates to lost revenue. When you invest in premium refractory equipment, you are buying time. Standard, low-grade components often fail prematurely because they cannot handle the thermal expansion cycles. By upgrading to specialized Refractory Anchors, you ensure the lining stays intact for longer durations.
High-performance Refractory Anchors for high temperature environments prevent "spalling"—a common issue where chunks of the lining break off. If the lining falls, the outer steel shell gets exposed to direct flame, causing warping or catastrophic failure.
Using Stainless steel for your anchoring systems provides superior oxidation resistance. Unlike carbon steel, which scales and thins out at 1,000°F, specific grades of Stainless steel anchors maintain their structural integrity at much higher peaks. This means you won't have to open the furnace for repairs every six months. Instead, you can move toward a multi-year turnaround schedule.
Feature | Low-Quality Equipment | Premium Refractory Equipment |
|---|---|---|
Service Life | 6-12 Months | 3-5 Years |
Failure Risk | High (Shell Hotspots) | Minimal (Secure Lining) |
Repair Frequency | Constant Patching | Planned Turnarounds Only |
Anchor Type | Basic mild steel | Corrugated or Y type stainless |
We see companies saving thousands of dollars just by switching from basic clips to Corrugated anchor designs. These designs offer better "grip" on the castable material. They handle the mechanical vibration of an Industrial furnace much better than smooth rods. When the lining stays put, the plant stays running.
Energy prices are volatile. An aging or poorly supported refractory lining is a massive energy drain. If the lining develops gaps because the Refractory Anchors have corroded or shifted, heat leaks out. This forces the burners to work harder to maintain the same internal temperature.
Investing in modern equipment allows for "zonal" insulation. This means using different layers of refractory material held together by sophisticated Y type anchors. These anchors can be designed to hold both a thick insulation backup and a dense, heat-resistant face.
The geometry of your hardware affects how heat moves. A V shape anchor is excellent for standard castables, but in high-velocity gas environments, you might need a more robust Corrugated profile to prevent the lining from shifting.
Refractory Anchors ensure uniform lining thickness.
They prevent "chimney effects" where hot air travels behind the refractory.
Stainless steel alloys reflect heat more effectively than oxidized iron.
When we look at an Industrial furnace, the goal is to keep the heat where it belongs—inside the chamber. By investing in better equipment, you reduce the "cold face" temperature of the furnace. This not only saves fuel but also protects the workers standing near the equipment. It makes the entire operation more sustainable.
Safety is the most important benefit. A sudden refractory failure can lead to "blowouts" where molten material or high-pressure gases escape. This usually happens when the internal supports, the Refractory Anchors, fail due to chemical attack or mechanical fatigue.
By investing in Refractory Anchors for high temperature zones, you create a redundant safety system. Even if a small section of the brick or castable cracks, the anchors hold the remaining pieces in place, preventing a total collapse until a safe shutdown can be initiated.

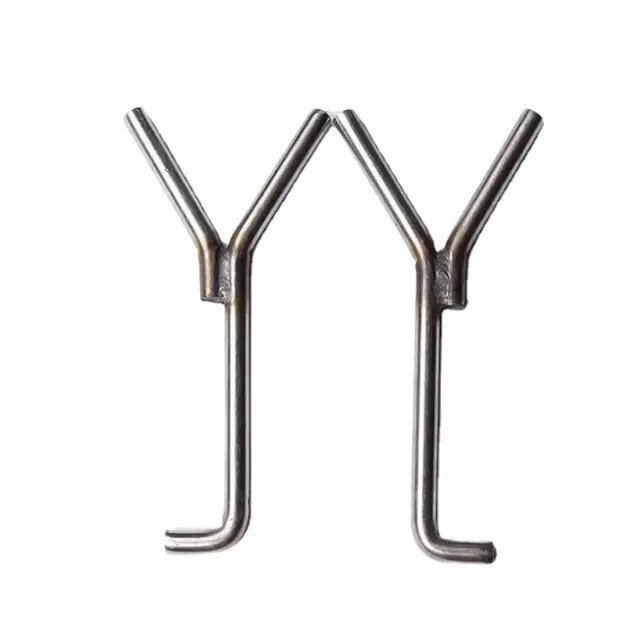

In heavy-duty applications, the Y type anchor is often preferred for its high load-bearing capacity. It provides multiple points of contact with the refractory material. On the other hand, the V shape is ideal for lighter linings where flexibility is needed during thermal expansion.
Safety Checklist for Refractory Upgrades:
Verify all Refractory Anchors are made from the correct Stainless steel grade (e.g., 304, 310, or 330).
Ensure Corrugated surfaces are used in areas with high vibration to prevent slippage.
Match the anchor height to exactly 66% or 75% of the lining thickness.
Inspect for "green rot" or carburization on old anchors during every shutdown.
We cannot stress enough that the cost of a high-quality anchor is a fraction of the cost of a legal settlement or a fire department intervention. It is the cheapest insurance policy you can buy for your high-heat assets.
It is easy to look at the price tag of Stainless steel and think it is too expensive. However, the Return on Investment (ROI) for high-end refractory equipment is usually realized within the first year. You must look at the "Total Cost of Ownership."
A cheap V shape anchor made of low-grade metal might cost $2, but if it fails, the repair cost is $20,000 in labor and $100,000 in lost production. In contrast, a premium Refractory Anchors solution might cost $5 but lasts five times longer.
When we analyze the performance of an Industrial furnace, we look at the "tonnage per lining." If your kiln produces 100,000 tons before the lining fails, but with better Refractory Anchors it produces 150,000 tons, you have effectively reduced your equipment cost by 33% per ton produced.
They say "you get what you pay for," and in the world of high-temperature manufacturing, this is especially true. Using Corrugated anchors to increase the surface area of the bond between the steel and the ceramic saves money in the long run because it prevents localized failures that lead to expensive "emergency" patches.
Modern industrial processes are getting hotter and more chemically aggressive. If you are running an Industrial furnace that processes sulfur or heavy oils, the atmosphere is corrosive. Standard refractory supports will dissolve like sugar in water.
Investing in specialized Refractory Anchors means choosing materials that are "tailored" to your chemistry. For example, some Stainless steel alloys are specifically designed to resist "pitting" in high-chlorine environments.
310 Stainless steel: Best for general high-temperature oxidation up to 2100°F.
Inconel Alloys: Used for Refractory Anchors for high temperature zones exceeding 2200°F or in highly acidic gases.
V shape designs: Allow for the most movement in high-cycle furnaces.
Y type designs: Provide the most stability for heavy, overhead linings.
They allow the furnace to operate at its peak design capacity without the fear of the lining "melting away." If you want to push your production limits, you must first ensure your hardware can handle the heat.
Not all furnaces are created equal. A rotary kiln has different mechanical needs than a static boiler. Investing in the right Refractory Anchors means understanding the physics of your specific Industrial furnace.
In a rotating environment, the refractory lining is constantly under centrifugal force and gravity. It wants to fall off as the kiln turns. Here, Corrugated anchors are non-negotiable. The "ridges" on the anchor provide the mechanical lock needed to fight gravity.
We recommend using a mix of Y type and V shape supports depending on the orientation of the furnace walls.
Walls: Often use V shape for ease of installation.
Roofs: Require Y type or "Cobra" styles for maximum hanging strength.
High-Wear Zones: Require Stainless steel with higher nickel content to prevent brittle fractures.
When the equipment is built with the right structural support, it behaves as a single unit rather than a collection of loose parts. This "monolithic" integrity is what separates a world-class facility from a struggling one.
The final benefit of investing in high-quality equipment is the ease of installation. Modern Refractory Anchors are designed for rapid welding. Whether you use "stud welding" or "hand welding," the consistency of the Stainless steel allows for a perfect bond every time.
If you use cheap, inconsistent metals, the weld might look good but fail under the first thermal shock. High-quality Refractory Anchors come with precise dimensions, making the layout process faster for the masonry crew.
Uniformity: Every V shape anchor is identical, ensuring a level lining.
Compatibility: They work with all major brands of castable and plastic refractories.
Versatility: Y type anchors can be easily adjusted on-site for minor wall inconsistencies.
By spending more on the hardware upfront, you save 15-20% on the labor costs of the installation. The crew finishes faster, and the furnace is back in service sooner. It is a win-win for the project manager and the CFO.
Investing in your refractory equipment is a multi-layered strategy that pays dividends in safety, efficiency, and reliability. From the selection of Stainless steel grades to the geometric choice of a V shape or Y type anchor, every detail matters. These Refractory Anchors are the silent heroes of the Industrial furnace, holding everything together while the world inside burns at thousands of degrees. Don't settle for "good enough" when your production depends on "the best."
Q: How do I know if I need Y type or V shape Refractory Anchors?A: It depends on the weight of your lining and the orientation. Y type anchors are better for heavy loads and ceilings, while V shape is more common for standard wall castables.
Q: Is Stainless steel always necessary for Refractory Anchors?A: For any Industrial furnace operating above 900°F (480°C), Stainless steel is required to prevent oxidation and total structural failure of the anchor.
Q: What is the benefit of a Corrugated anchor?A: The Corrugated design increases the surface area for the refractory to "grip," which is essential in high-vibration or rotating environments.
Q: Can these anchors be used in high-temperature zones?A: Yes, we provide specialized Refractory Anchors for high temperature applications that use high-nickel alloys to maintain strength up to 2300°F.
