When we discuss HVAC systems, most people think about air conditioning units or residential heaters. However, the industrial side of the HVAC industry involves massive heating plants, boilers, and high-temperature thermal processing units. These systems rely heavily on refractory linings to manage extreme heat. At the heart of these linings lies a critical, yet often overlooked component: Refractory Anchors. Without these small but mighty steel structures, the protective insulation inside an Industrial furnace or boiler would simply collapse under its own weight or succumb to thermal stress.
In this guide, we explore why Refractory Anchors are the backbone of thermal management. We look at their specific functions, the materials like Stainless steel that make them durable, and how different shapes like the V shape or Y type solve unique engineering challenges. Whether you are maintaining a commercial boiler or designing a complex heat recovery system, understanding these components is essential for operational safety and efficiency.
Why do we need Refractory Anchors? Imagine a skyscraper without a steel frame; the concrete would eventually crack and fall. In the HVAC industry, refractory materials (like castables or ceramic fibers) protect the outer casing of a furnace from melting. However, these materials lack structural "grip" on their own. Refractory Anchors provide the necessary mechanical link between the metal shell and the refractory lining. They ensure the lining stays attached during heating and cooling cycles.
In large-scale HVAC applications, thermal expansion is a constant threat. As temperatures rise, the metal shell and the refractory material expand at different rates. Refractory Anchors act as "shock absorbers" and "grippers" simultaneously. They hold the weight of the lining—especially in overhead or ceiling applications—preventing catastrophic failures. Without them, the lining would peel away, leading to "hot spots" on the furnace exterior, which can melt the steel casing and cause total system failure.
Function | Description | HVAC Benefit |
|---|---|---|
Mechanical Bond | Secures lining to the casing | Prevents lining detachment |
Weight Support | Carries the load of monolithic refractories | Enables ceiling/arch installations |
Stress Distribution | Spreads thermal expansion forces | Reduces cracking and spalling |
Thermal Path Control | Maintains consistent insulation thickness | Improves energy efficiency |
By using high-quality Stainless steel anchors, engineers ensure that these supports don't oxidize or snap when exposed to the corrosive gases often found in HVAC combustion chambers. They are the silent guardians of system integrity.
Material selection is the most critical decision in anchor procurement. In the HVAC world, standard carbon steel is useless because it scales and fails at relatively low temperatures. We prioritize Stainless steel because it offers the oxidation resistance and mechanical strength needed for high temperature environments.
They must withstand not just heat, but also chemical attacks from fuel combustion. Common grades include:
Grade 304: Good for moderate temperatures and general HVAC moisture resistance.
Grade 310/310S: The industry standard for high temperature applications (up to 1100°C), offering excellent scale resistance.
Grade 316: Essential if the HVAC system handles corrosive exhaust or is located in a coastal environment where salt air is a factor.
Using a Corrugated design in Stainless steel further enhances the surface area for the refractory to "bite" into. This mechanical interlock is what prevents the lining from sliding or vibrating loose in high-airflow HVAC ducts. When we choose the right alloy, we extend the maintenance cycle of the entire Industrial furnace, saving thousands in downtime costs.
Not all HVAC environments are the same. A flat wall requires different support than a curved duct or a heavy ceiling. This is where geometry comes into play. Refractory Anchors come in various geometries, but the V shape and Y type are the workhorses of the industry.

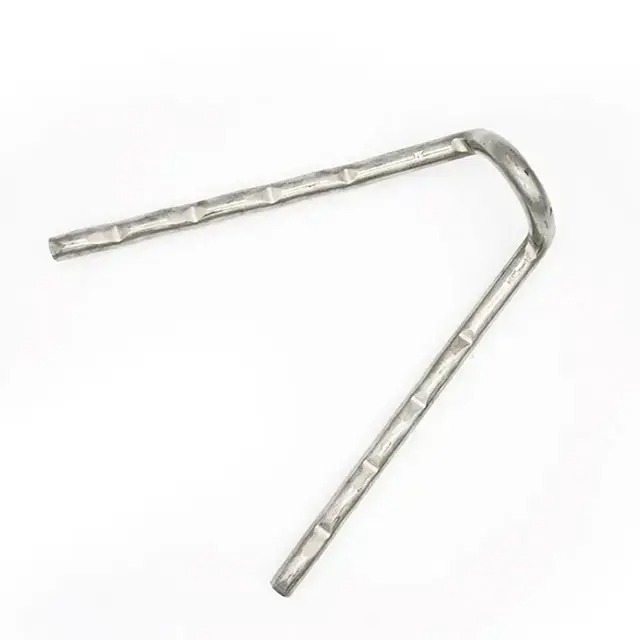

The V shape anchor is perhaps the most common. Its simple design makes it easy to weld and extremely effective for light to medium-weight linings.
Installation: Usually hand-welded or stud-welded.
Best For: Thin linings and ceramic fiber blankets.
Flexibility: It allows for slight movement as the refractory expands.
For heavy-duty HVAC boilers and large scale Industrial furnace projects, the Y type is superior.
Load Bearing: The "stem" of the Y provides deep penetration into the lining, while the "arms" provide a wide area of support.
Castable Support: It is the preferred choice for monolithic castable refractories which are poured or pumped into place.
Durability: The split-end design ensures that even if one side experiences localized stress, the other side remains anchored.
In HVAC systems, airflow can be turbulent. A Corrugated anchor surface provides better lateral stability against the "scouring" effect of high-velocity air. If an anchor is too smooth, the refractory might eventually vibrate loose. By choosing a specific shape, we tailor the mechanical support to the specific physics of the heat zone.
The HVAC industry often pushes equipment to its limits. When an Industrial furnace operates, the internal temperature can fluctuate rapidly. This "thermal cycling" is the primary killer of refractory linings. Refractory Anchors specifically designed for high temperature use must manage these transitions without becoming brittle.
Refractory materials are brittle. Steel is ductile. When the HVAC unit heats up, the anchor expands faster than the refractory. If the anchor is too rigid, it will crack the very lining it is supposed to protect.
Expansion Caps: High-end HVAC installations often use plastic caps on the tips of the anchors. These melt away during the first firing, leaving a small void that allows the anchor to expand safely.
Alloy Stability: We use Stainless steel alloys that maintain their "creep strength"—the ability to resist deformation under constant stress at high temperatures.
For high temperature HVAC zones, such as the primary combustion chamber, the density of anchors must be higher. We typically see a pattern of 16 to 25 anchors per square meter depending on the lining weight. This ensures that no single anchor carries too much load, which prevents localized failures that could lead to a system-wide shutdown.

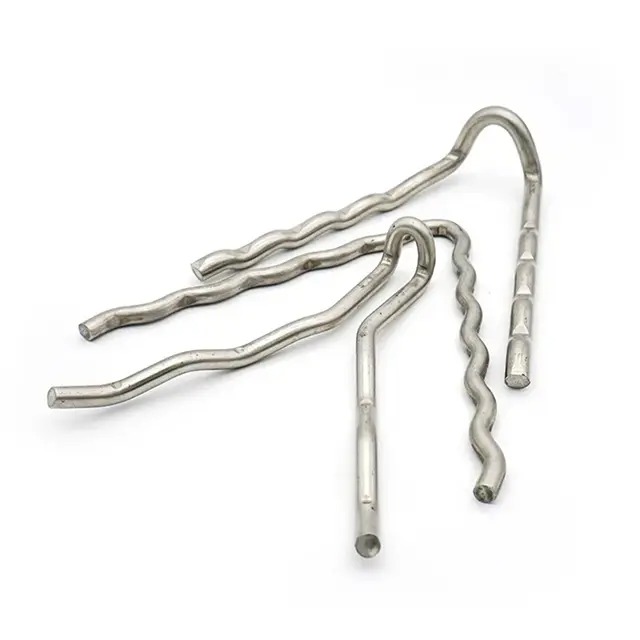

A common mistake in HVAC design is using smooth-sided anchors for thick, heavy linings. Corrugated anchors provide a significant upgrade in performance. By adding "waves" or "ribs" to the Stainless steel wire or strip, we dramatically increase the surface area contact between the metal and the refractory.
Increased Pull-out Resistance: It is much harder for a dried castable lining to slide off a Corrugated anchor than a smooth one.
Stress Dispersion: The waves help distribute the thermal expansion forces more evenly along the length of the anchor.
Vibration Dampening: Industrial HVAC fans create constant vibration. Corrugated designs "lock" the lining in place more securely.
In an Industrial furnace, the ceiling is the most vulnerable point. We almost always recommend Corrugated Y type anchors for these sections. They provide the "ribbed" strength needed to fight gravity and thermal stress simultaneously. It is a small design change that results in a 30-40% increase in lining lifespan (estimated data, varies by application).
Even the best Refractory Anchors will fail if installed incorrectly. In the HVAC industry, speed is often prioritized during repair shutdowns, but precision is what determines how long the fix lasts.
Most anchors are made from Stainless steel, while the furnace casing is usually carbon steel.
Dissimilar Metal Welding: You must use the correct welding rod (like 309L) to join these two materials. If you use standard rods, the weld will become brittle and snap.
Orientation: In vertical HVAC ducts, the anchors should be staggered. This prevents "cleavage planes" where the refractory could crack in a straight line.
Spaced for Success: Over-crowding anchors can be as bad as under-spacing them. Too many anchors create too many expansion points, which can actually crumble the lining.
Visual Check: Look for "necking" or thinning of the anchor due to oxidation.
Tap Test: A healthy anchor should feel solid; if it wiggles, the weld has failed.
Material Verification: Ensure the anchor is actually Stainless steel and not a cheaper substitute that won't survive the heat.
Step | Action | Why it matters |
|---|---|---|
1 | Surface Prep | Removes rust from the casing for a strong weld. |
2 | Layout Marking | Ensures even distribution of the V shape or Y type anchors. |
3 | Welding | Provides the structural foundation. |
4 | Expansion Capping | Prevents the anchor from cracking the refractory during expansion. |
The HVAC industry is moving toward higher efficiency and lower emissions. This requires hotter combustion and better insulation. Consequently, the demand for specialized Refractory Anchors is growing. We are seeing a shift toward "Super Alloys" and hybrid designs that can handle the extreme environments of modern high-efficiency Industrial furnace units.
Modern engineering uses FEA (Finite Element Analysis) to predict exactly where an HVAC lining will fail. This allows us to place Refractory Anchors only where they are needed most, reducing weight and cost.
Custom Geometries: Beyond the V shape, we now see complex 3D-formed anchors that provide multi-directional support.
Ceramic-Metal Hybrids: For the absolute highest temperatures, some systems use ceramic anchors held by Stainless steel clips, combining the heat resistance of ceramic with the toughness of steel.
As HVAC systems become more compact and powerful, the role of the anchor becomes even more vital. They allow for thinner, more efficient insulation layers that still provide the same thermal protection as older, bulkier systems.
When it comes to the safety and longevity of your HVAC systems, you cannot afford to compromise on the quality of your Refractory Anchors. At Leader, we understand that every Industrial furnace and high-temperature HVAC unit has its own unique set of challenges. We are not just a manufacturer; we are a dedicated partner in your engineering success.
Our factory, Leader, has built a formidable reputation for excellence in the production of Stainless steel anchoring systems. We pride ourselves on our state-of-the-art manufacturing facility where we produce a massive variety of shapes, including the classic V shape, the robust Y type, and high-grip Corrugated designs. We utilize only the highest grade materials to ensure our products excel for high temperature service. Our strength lies in our precision—every anchor we produce undergoes rigorous quality control to ensure weldability and durability. We have the scale to handle massive industrial orders while maintaining the flexibility to create custom solutions for niche HVAC applications. When you work with us, you are leveraging decades of expertise in steel fabrication and thermal management.
Refractory Anchors may be small, but their impact on the HVAC industry is monumental. They are the essential link that allows an Industrial furnace to operate safely, efficiently, and for long periods without failure. By selecting the right Stainless steel grade, choosing between a V shape or Y type based on the load, and ensuring a Corrugated finish for maximum grip, engineers can significantly extend the life of their thermal linings.
Remember, the cost of a high-quality anchor is a fraction of the cost of a furnace failure. Investing in the right components today prevents the "hot spots" and structural collapses of tomorrow.
Most HVAC systems use Stainless steel (Grades 304 or 310) because it resists oxidation for high temperature environments and handles the corrosive nature of combustion gases.
You should use a Y type anchor for heavy, thick castable linings or ceiling applications. The V shape is better suited for thinner linings or lightweight ceramic fiber insulation.
Typically, between 16 and 25 anchors are needed per square meter. However, for heavy-duty Industrial furnace applications or overhead sections, this density may increase to ensure safety.
It is generally not recommended. Even if they look okay, the Stainless steel has likely undergone "thermal fatigue" and may be brittle. Replacing them ensures the integrity of the new lining.
Yes. A Corrugated surface provides a much better mechanical bond with the refractory material, which is especially important in HVAC systems with high vibrations or airflow.
