When we think about massive industrial furnaces or high-temperature kilns, we often focus on the refractory bricks or the castable linings that withstand the heat. However, there is a hidden hero behind every successful thermal installation: Refractory Anchors. Without these small but mighty components, the best refractory materials in the world would simply collapse under their own weight or fail due to thermal cycling.
The primary mission of Refractory Anchors is to provide a mechanical bond between the furnace shell and the refractory lining. They prevent the lining from sagging, buckling, or detaching, especially on ceilings and vertical walls. In this guide, we will explore why choosing the right Stainless steel Refractory Anchors is vital for your operations and how different shapes like V shape and Y type solve specific engineering challenges.
To appreciate why Refractory Anchors are indispensable, we must look at the physics of an Industrial furnace. These structures undergo intense thermal expansion. As temperatures rise, the steel shell and the refractory lining expand at different rates. Without a flexible yet strong connection, the lining would crack and fall away.
Refractory Anchors act as the skeletal system for the "flesh" of the furnace. They are welded to the casing and extend into the lining. This creates a monolithic structure that can handle gravity and mechanical vibration. If you use poor-quality materials, you risk a catastrophic lining failure, leading to unplanned shutdowns and massive repair costs.
Feature | Importance of Refractory Anchors |
|---|---|
Support | They hold the weight of castable or ceramic fiber linings. |
Stability | They prevent the lining from pulling away from the steel shell. |
Thermal Flex | They allow for movement during heating and cooling cycles. |
Load Distribution | They spread the stress across the entire surface of the furnace. |
In the world of extreme heat, not all metals are created equal. Using standard carbon steel is a recipe for disaster. We almost exclusively recommend Stainless steel Refractory Anchors for these applications. Specifically, alloys like SS310 or SS304 are used because they maintain their tensile strength even at several thousand degrees. Refractory Anchors for high temperature must resist oxidation; otherwise, they will turn into brittle rust inside your lining, causing it to crumble from within.
Designers don't just pick a shape at random. Each design, whether it is a V shape or a Y type, serves a specific mechanical purpose based on the thickness of the lining and the method of installation.

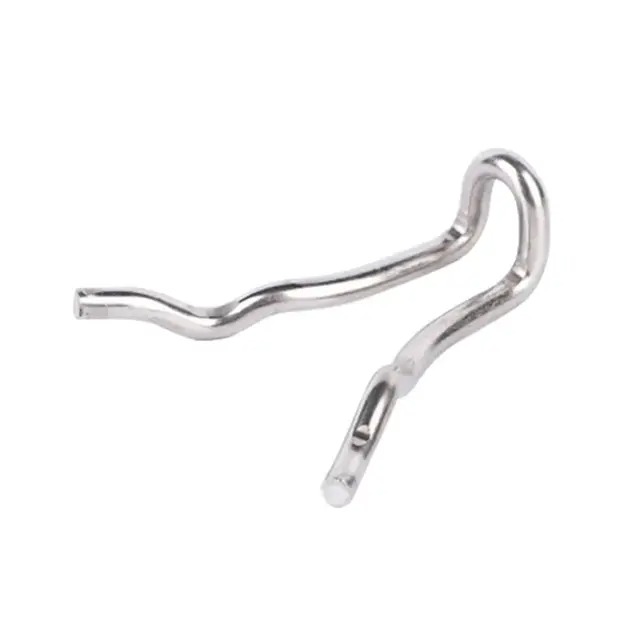

The V shape is perhaps the most common design in the industry. It is simple, cost-effective, and provides excellent anchorage for castable linings. Because the legs are angled, they create a "wedging" effect that grips the refractory material firmly. It is particularly effective in thinner linings where space is limited but high-density support is required.
When dealing with thicker, heavier linings or roof sections, the Y type is often the preferred choice. The "stem" of the Y provides extra clearance from the shell, while the branching arms offer a wider area of support. This geometry is crucial for preventing "peeling" in overhead applications.
Other common variations include:

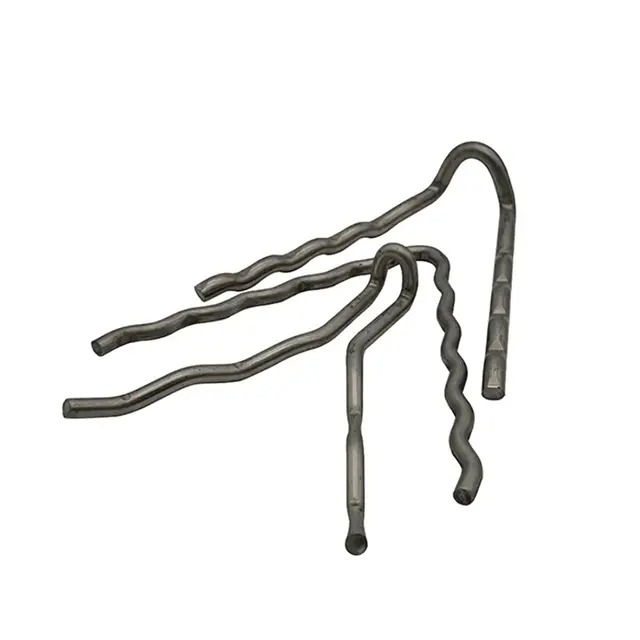

Corrugated anchors: These feature a "wavy" design along the legs, which significantly increases the surface area and friction, ensuring the refractory stays put even under high vibration.
Split-leg anchors: These allow installers to bend the legs out in different directions, providing a custom grip for complex furnace geometries.
The lifespan of an Industrial furnace is directly tied to the health of its Refractory Anchors. When we talk about furnace efficiency, we often discuss heat retention. If anchors fail, gaps form between the lining and the shell. These gaps become "hot spots," where heat escapes and damages the outer steel casing.
By investing in high-quality Stainless steel Refractory Anchors, you are essentially buying insurance for your equipment. They ensure that the lining remains tight and sealed. This prevents "short-circuiting" of heat, which saves energy and protects the structural integrity of the entire plant. We often see that a 5% saving on anchor quality leads to a 50% reduction in the lining's lifespan. It is simply not worth the risk.
Consider these factors that anchors help mitigate:
Thermal Shock: Rapid temperature changes cause linings to expand and contract quickly. Robust anchors absorb this energy.
Mechanical Erosion: In kilns where materials are moving, the lining is subjected to physical wear. Anchors keep the structure rigid against this force.
Chemical Attack: In some processes, gases can penetrate the refractory. Stainless steel alloys prevent the anchors from corroding under these conditions.
You cannot simply weld Refractory Anchors wherever you feel like it. There is a precise science to their placement. If you place them too close together, you create "planes of weakness" where the refractory might crack. If they are too far apart, the lining will sag.
Typically, the spacing depends on the weight of the refractory and whether the surface is horizontal or vertical. For a ceiling, you might see Refractory Anchors placed every 150mm to 200mm. On a wall, this might increase to 300mm.
Refractory Anchors for high temperature must also be installed with "expansion caps" or plastic coatings on the tips. Why? Because the metal anchor expands more than the refractory material. If the anchor hits a hard stop inside the refractory, it will crack the lining from the inside out. The cap provides a tiny void that allows the anchor to grow into the space safely as it heats up.
The way you attach Refractory Anchors to the furnace shell is just as important as the anchor itself. Most modern facilities use "stud welding" or "hand welding."
Stainless steel anchors must be welded using compatible electrodes to ensure the bond is just as heat-resistant as the anchor. If a weld fails, the anchor is useless. In many cases, Corrugated anchors are used in areas where hand-rammed refractories are applied, as the ridges provide extra "bite" for the installer to pack the material around.
Common Installation Checklist:
Clean the steel shell of all rust and scale before welding.
Ensure the V shape or Y type orientation matches the flow of the castable.
Check that the height of the anchor is approximately 60% to 80% of the total lining thickness.
Apply bitumastic paint or plastic sleeves to the tips to accommodate thermal expansion.
While we mention Stainless steel frequently, the specific grade is a critical decision. The environment inside an Industrial furnace is often corrosive. It isn't just about the heat; it's about what you are burning.
304 Grade: Good for lower temperature applications or parts of the furnace that stay relatively cool.
310 / 310S Grade: The industry standard for Refractory Anchors for high temperature. It offers excellent oxidation resistance up to 1100°C.
Inconel / Alloy 601: Used for the most extreme cases where temperatures exceed 1200°C or where the atmosphere is highly carburizing.
Using the wrong grade is a common mistake. For example, using a lower-grade anchor in a high-sulfur environment will lead to "sulfidation," where the metal literally turns into a soft paste. Always match your Refractory Anchors to the specific chemical and thermal profile of your process.
At Leader, we understand that every millimeter of a Refractory Anchor matters. As a specialized manufacturer, we have spent years perfecting the production of Stainless steel Refractory Anchors that stand the test of time in the most demanding environments. Our factory is equipped with advanced automated forming machines, ensuring that every V shape, Y type, and Corrugated anchor we produce meets strict dimensional tolerances and material certifications.
We pride ourselves on our technical expertise. We don't just sell components; we provide solutions. Whether you need custom designs for a unique Industrial furnace or high-volume standard anchors for a major overhaul, our team at Leader has the capacity and the precision to deliver. Our commitment to quality is reflected in our rigorous testing protocols, ensuring that our products provide the ultimate mechanical bond for your refractory linings. We are more than a supplier; we are your partner in ensuring industrial safety and efficiency.
In summary, the importance of Refractory Anchors cannot be overstated. They are the essential link that transforms a pile of refractory material into a functional, durable furnace lining. From selecting the right Stainless steel grade to choosing between a V shape or a Y type design, every decision impacts the longevity and safety of your operations. By focusing on quality and proper engineering, you ensure that your Industrial furnace performs at its peak for years to come.
It mostly depends on lining thickness. V shape anchors are excellent for thinner, lighter linings, while Y type anchors provide superior support for heavy, thick castable sections, especially on furnace roofs.
Carbon steel oxidizes and loses its strength rapidly at high temperatures. Stainless steel (like 310S) maintains its structural integrity and resists the "scaling" that would otherwise cause the lining to detach.
The Corrugated or "wavy" design increases the surface area in contact with the refractory. This provides a much stronger mechanical grip, which is vital in areas subject to heavy vibration or mechanical stress.
Yes. Since metal expands more than refractory material, the tips of Refractory Anchors for high temperature need a small amount of space to move. Caps or wax coatings create this necessary void.
We strongly advise against it. Even if they look okay, the metal has likely undergone "thermal fatigue" and may be brittle. Always use new Refractory Anchors when installing a new lining.
