Refractory linings often fail under extreme heat. A Refractory Anchor prevents cracks and detachment by securing high-temperature linings in industrial furnaces. In this article, we explain the different types of anchors, their industrial applications, and practical selection tips. You will learn how these anchors improve safety, durability, and operational efficiency.

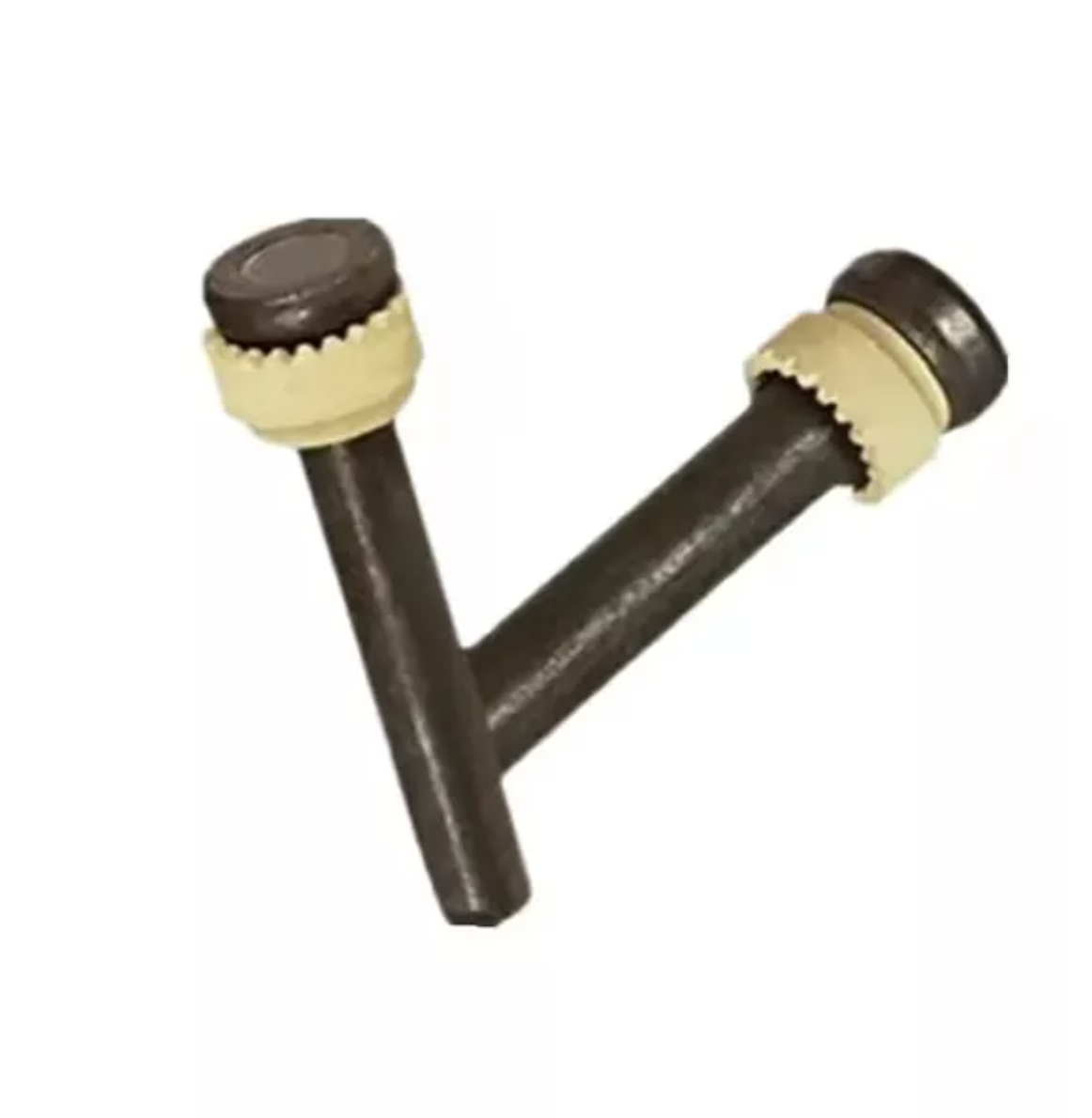

A refractory anchor is a mechanical fastener that secures refractory linings to the structural shell of industrial furnaces or equipment. These anchors prevent the lining from shifting or cracking under thermal expansion, vibration, and mechanical stress. Without anchors, refractory materials can fail prematurely, resulting in expensive repairs and production delays. Anchors act as a bridge between the lining and structural metal, ensuring both move harmoniously under heat fluctuations.
Refractory anchors are typically made of high-strength metals or ceramics. Components include rods, pins, sleeves, or clips. Stainless steel anchors resist oxidation and moderate heat, while alloy steel supports higher temperatures. Ceramic and coated metal anchors provide excellent thermal insulation and chemical resistance. Material selection depends on the operating temperature, chemical exposure, and mechanical load.
Unlike standard mechanical fasteners, refractory anchors are designed specifically for high-temperature environments. They resist creep, thermal shock, and chemical corrosion. This specialization ensures the safety of industrial furnaces and reduces maintenance costs. Common variants include high-temperature anchors, furnace anchors, refractory fasteners, and industrial anchors, each designed for unique operational challenges.
Tip：Proper material selection for anchors can prevent premature refractory failure and save significant maintenance costs.
Refractory anchors stabilize linings to prevent displacement during extreme thermal cycles. For industries like steelmaking and glass production, lining failure can halt operations and endanger personnel. Anchors ensure that refractory bricks, castables, and tiles remain fixed, preserving furnace geometry and functionality.
Industrial furnaces can reach temperatures exceeding 1500°C. High-temperature anchors are designed to maintain their mechanical strength and prevent deformation under these conditions. Anchors act as the backbone of refractory systems, allowing linings to withstand heat without cracking or detachment.
Premature refractory failure can result in extended shutdowns. Properly installed refractory anchors enhance lining lifespan, minimize repairs, and optimize production continuity. They also reduce labor costs associated with frequent refractory replacements, making them a vital investment in industrial efficiency.
Falling refractory materials pose serious safety risks. Anchors prevent detachment and reduce hazards in high-temperature environments. Certified anchors also comply with ASTM, ISO, or MIL-Spec standards, ensuring that safety and regulatory requirements are met.
Tip：Investing in high-quality refractory anchors reduces downtime, enhances safety, and improves operational efficiency.
Refractory anchors maintain integrity under extreme heat. They are designed to resist thermal shock, high expansion, and contraction cycles. For example, furnace anchors can withstand repeated heating and cooling without warping or losing attachment strength. Anchors often include ceramic coatings to reduce heat transfer to the supporting structure.
Tensile strength and load-bearing capacity are crucial for supporting refractory linings. Anchors must withstand both static and dynamic forces caused by vibrations, material handling, or thermal expansion. Oversized or undersized anchors can compromise lining stability, highlighting the importance of precise selection.
Industrial environments often involve exposure to slag, acids, or other aggressive substances. Refractory fasteners with specialized coatings resist chemical attack, preserving both anchor and lining integrity. Selecting corrosion-resistant materials ensures long-term reliability and minimizes unexpected failures.
Anchors come in various designs to suit different lining types. Straight rods, corrugated surfaces, and expansion types are common. Some anchors accommodate castables, while others work best with refractory bricks. The right design enhances installation efficiency and ensures consistent performance throughout the anchor’s service life.
Tip：Anchors should be selected based on both thermal and mechanical demands to ensure long-term reliability.
Anchor Type | Key Features | Typical Applications | Material Options |
Welded Anchors | Permanently affixed, high mechanical strength | Furnace roofs, combustion zones, kilns | Stainless steel, high-alloy steel |
Corrugated Anchors | Increased surface contact, accommodates thermal expansion | Rotary kilns, vibrating furnaces | High-temp alloys, stainless steel |
Expansion Anchors | Adjusts to thermal changes, reduces stress on lining | Glass furnaces, incinerators, cyclical kilns | High-nickel alloys, stainless steel |
Coated/Insulated Anchors | Reduces heat transfer, resists corrosion | Cement kilns, petrochemical reactors, glass furnaces | Ceramic coatings, metallic oxides |

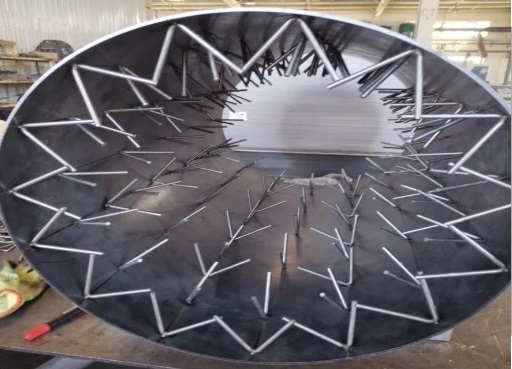

Welded anchors are permanently attached to the structural metal surfaces of furnaces, kilns, or reactors. They provide exceptional mechanical strength, ensuring that refractory bricks or castable linings remain firmly in place, even under extreme thermal and mechanical stress. The welding process creates a robust bond that prevents anchor movement during heating cycles, which is critical in high-temperature industrial environments. These anchors are often made from stainless steel or high-alloy materials to resist oxidation and maintain strength at elevated temperatures. Welded anchors are particularly suited for high-stress areas, such as the roof of a furnace or zones near combustion chambers, where other anchor types might fail. Installation requires skilled welders and careful quality control, as improper welding can lead to weak points or premature failure. In practice, welded anchors contribute to longer refractory life and reduce the frequency of maintenance shutdowns, which directly impacts production efficiency. They are widely used in steelmaking, cement kilns, and petrochemical reactors where reliability is non-negotiable.
Corrugated, twisted, or rebar-style anchors are designed to maximize surface contact with refractory material, enhancing adhesion and load distribution. The corrugated shape allows the anchor to embed more deeply into castables or brick linings, accommodating slight movements caused by thermal expansion and contraction. This feature is particularly valuable in areas that experience significant vibration, such as rotary kilns or vibrating furnaces, where rigid anchors might loosen over time. Corrugated anchors can be manufactured from high-temperature alloys or stainless steel, providing resistance to both heat and chemical corrosion. They are easier to install than welded anchors in certain applications, as they do not require permanent bonding to the metal shell. In addition, their flexible design reduces stress concentrations, preventing micro-cracks in refractory material that can propagate over repeated heating and cooling cycles. Many industrial facilities favor corrugated anchors in zones where thermal cycling is frequent, balancing mechanical stability with ease of installation.
Tip：Corrugated anchors are ideal for applications where vibration and thermal cycling could compromise rigid anchor performance.
Expansion anchors are engineered to respond to changes in temperature, expanding or contracting to accommodate thermal movement of refractory linings. This dynamic adjustment significantly reduces stress within the lining, preventing cracks, warping, or detachment. Expansion anchors are particularly beneficial in applications with wide temperature fluctuations, such as incinerators, glass furnaces, and kilns that cycle frequently between heating and cooling. They often feature spring-loaded or flexible components that maintain constant contact with the refractory material, ensuring stability throughout thermal cycles. Material selection is crucial for expansion anchors, as they must maintain elasticity and strength at elevated temperatures. Commonly used materials include high-nickel alloys and stainless steel alloys rated for high-temperature applications. By reducing mechanical stress, expansion anchors enhance refractory durability and minimize maintenance interventions. Engineers often combine expansion anchors with other types of anchors in critical zones to optimize overall lining performance and safety.
Coated or insulated anchors are treated with ceramic, metallic oxide, or insulating layers to reduce heat transfer from the refractory lining to the supporting structure. These coatings improve resistance to chemical corrosion, slag attack, and oxidation, making them suitable for harsh environments such as cement kilns, glass furnaces, and petrochemical reactors. By limiting heat conduction to the metal shell, coated anchors also reduce thermal fatigue and prolong the lifespan of both the anchor and the surrounding refractory material. In some designs, insulation layers allow the anchor to maintain strength even at extremely high temperatures exceeding 1500°C. Coated or insulated anchors are particularly useful in reactive environments where exposure to molten materials or aggressive gases could quickly degrade unprotected metal anchors. Installation is similar to standard anchors, but additional care is needed to avoid damaging the coating during handling. The use of coated anchors can significantly reduce downtime, extend maintenance intervals, and ensure consistent operation in demanding industrial settings.
Tip：Coated and insulated anchors are ideal for environments with extreme temperatures or corrosive conditions, enhancing safety and durability.
Refractory anchors are crucial in steel and metal processing, stabilizing furnace linings, ladles, and crucibles. They endure intense heat, chemical reactions, and mechanical stress, ensuring uninterrupted production.
Rotary kilns in cement and glass plants rely on anchors to maintain lining integrity during high-speed rotation and thermal expansion. Proper anchoring minimizes wear, prevents cracks, and extends the lifespan of the lining.
Boilers, turbines, and nuclear reactors use refractory anchors to secure high-temperature linings. Anchors maintain equipment efficiency, reduce downtime, and enhance safety by keeping linings intact.
High-temperature reactors, heaters, and pipelines utilize refractory anchors to prevent chemical and thermal damage. Anchors ensure stability under aggressive conditions, maintaining continuous operations.
Tip：Matching the anchor type to industry-specific conditions enhances both efficiency and safety.
Choose anchors rated above the maximum expected temperature, with a safety margin of 10–20%. High-temperature anchors perform reliably without deformation.
Consider tensile strength and load-bearing capacity. Oversized anchors waste resources; undersized anchors risk failure. Industrial anchors must handle both thermal expansion and mechanical stress.
Materials such as stainless steel, alloys, or ceramics offer different levels of heat and chemical resistance. Coatings improve corrosion resistance and extend service life in challenging environments.
Ensure anchors are compatible with lining types. Some anchors are better suited for bricks, while others accommodate castables. Correct installation prevents early failures and improves performance.
Certified anchors meeting ASTM, ISO, or MIL-Spec standards provide predictable performance and regulatory compliance. Using certified products minimizes operational risks.
Tip：Purchase anchors from trusted suppliers to guarantee specifications, safety compliance, and long-term reliability.
Refractory anchors play a vital role in industrial furnace safety and efficiency. Proper selection of high-temperature anchors, furnace anchors, and refractory fasteners ensures stable linings, reduces maintenance, and prolongs equipment life. Understanding material properties, mechanical requirements, and compliance standards is essential for operational reliability. For industrial operators, investing in certified anchors enhances performance, reduces downtime, and supports safe, cost-effective operations.
Refractory Anchor ensures stable linings in industrial furnaces.
Jiangsu Leader Special Steel Products Co., Ltd. provides high-quality anchors that resist extreme heat and corrosion.
Their products enhance safety, reduce maintenance, and prolong equipment life, supporting efficient and reliable industrial operations.
A: A Refractory Anchor secures high-temperature linings in furnaces and kilns, preventing cracks and detachment.
A: They maintain lining integrity, reduce downtime, and enhance safety in steel, glass, and cement plants.
A: Types include welded anchors, corrugated anchors, expansion anchors, and coated or insulated anchors.
A: Consider temperature rating, mechanical load, material, coating, and compliance with ASTM or ISO standards.
A: Yes, Refractory fasteners and coated industrial anchors resist slag, acids, and other aggressive substances.
A: Absolutely, they extend refractory life and reduce labor and repair costs across industrial operations.
