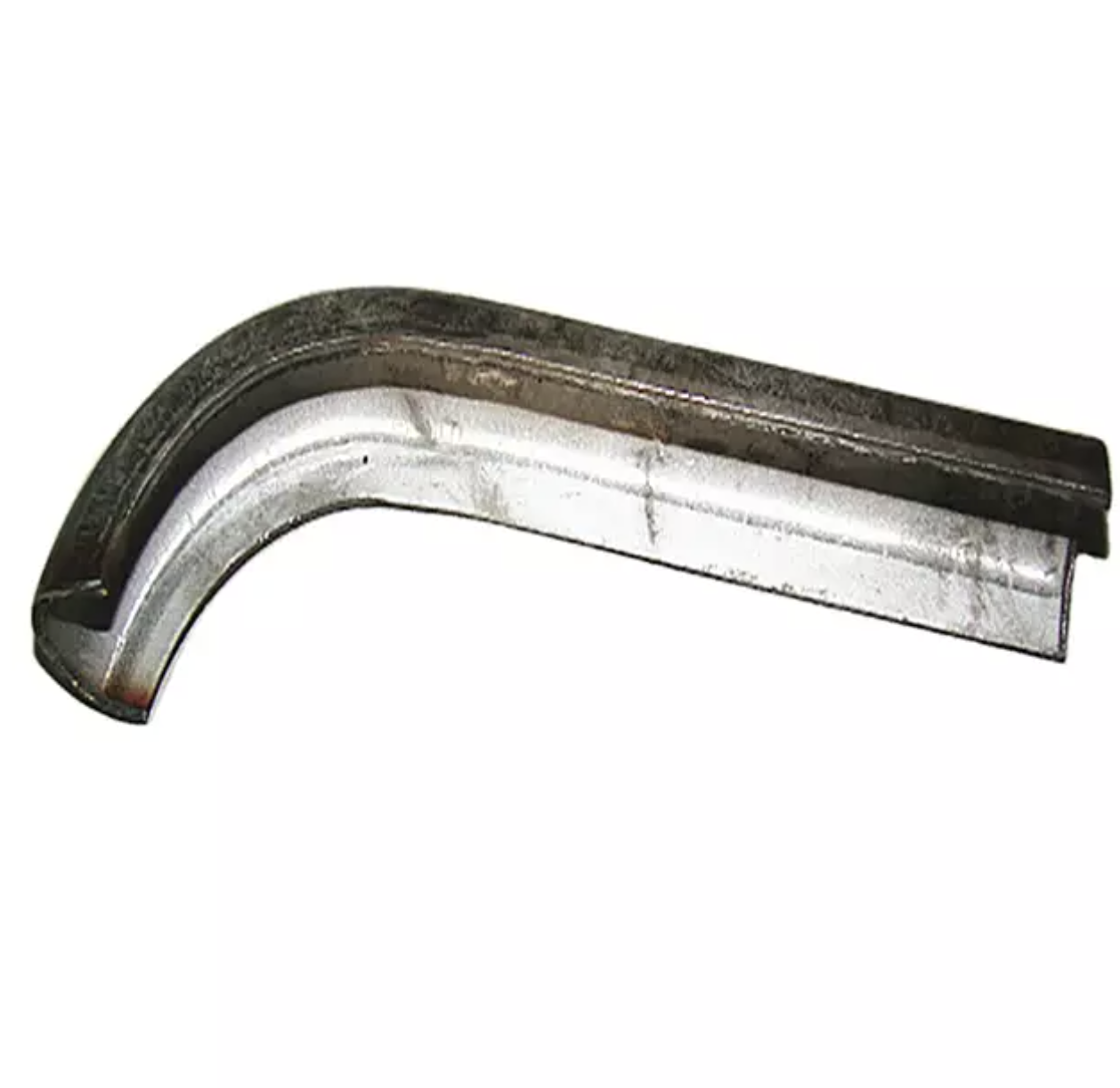

Ever wondered why furnace linings fail prematurely? Refractory Anchor systems hold high-temperature linings securely in place. Improper installation can lead to costly downtime and safety hazards. In this guide, we will explore each step of installing these anchors. You will learn techniques, tips, and best practices to ensure long-lasting, safe, and efficient operation.
Welded anchors are permanently fixed to the structural metal of furnaces or kilns. Their main advantage is providing exceptional mechanical stability in high-stress zones. They are typically fabricated from stainless steel or high-alloy metals to resist oxidation and maintain tensile strength under extreme temperatures. Proper welding techniques are critical; poor welds can create weak points leading to premature failure. Welded anchors are often used in steelmaking, cement kilns, and petrochemical reactors. Installation requires precise measurement, careful welding, and inspection to verify consistent hold throughout thermal expansion cycles.
Corrugated or twisted anchors maximize contact with the refractory lining. This design distributes mechanical loads evenly, reducing stress points. They accommodate slight thermal movement, which is important in equipment with vibration or frequent heating cycles. Corrugated anchors are typically used in rotary kilns, vibrating furnaces, and areas where rigid anchors may loosen. Made from high-temperature alloys or stainless steel, they offer corrosion resistance and long-term durability.
Expansion anchors move slightly in response to thermal expansion, reducing stress on linings. They are ideal for incinerators, glass furnaces, and kilns with frequent heating and cooling cycles. Expansion anchors often feature spring-loaded or flexible components that maintain pressure against the lining. Common materials include high-nickel alloys and stainless steel designed for high-temperature applications. They are often combined with other anchor types in critical zones.
Coated or insulated anchors use ceramic, metallic oxide, or other insulating layers to reduce heat transfer. They protect both the anchor and the refractory lining from chemical attack and thermal fatigue. These anchors maintain mechanical strength even at temperatures exceeding 1500°C. Proper handling during installation is critical to prevent coating damage, which could compromise thermal and chemical protection.
Tip： Selecting the right type of Refractory Anchor based on operational conditions improves durability and minimizes downtime.
Proper planning is the foundation for successful refractory anchor installation. Before any work begins, industrial operators must assess critical factors such as operating temperatures, mechanical loads, chemical exposure, and vibration levels in the furnace or kiln. Understanding these parameters helps determine which type of Refractory Anchor is best suited for each zone. High-stress areas, such as near combustion chambers or furnace roofs, require anchors with maximum mechanical strength, such as welded or high-temperature anchors, while lower-stress zones may use corrugated or coated types. Accurate measurement and marking of the installation layout are crucial. Misalignment can lead to uneven load distribution, thermal stress, and early refractory failure. Operators should also plan for anchor spacing, taking into account the size of the lining material and expected thermal expansion. Proper planning reduces installation errors, optimizes anchor performance, and extends the life of the refractory lining.
Different types of refractory anchors require tailored installation approaches to ensure maximum efficiency and durability. Welded anchors are affixed directly to the metal shell using certified welding procedures to maintain mechanical stability under extreme heat. The welding process must be controlled to prevent warping or weakening the metal surface. Corrugated anchors, designed to maximize surface contact, are embedded into castables or brick linings, ensuring secure adhesion and distributing stress evenly across the refractory material. Expansion anchors are installed with allowances for thermal movement; their adjustable components compensate for expansion and contraction cycles, preventing cracks or detachment. Coated or insulated anchors require careful handling to preserve protective layers, as damage to coatings can reduce corrosion and heat resistance. Each installation step must follow manufacturer guidelines and industry best practices. Using precise techniques not only guarantees structural stability but also minimizes future maintenance needs and operational risks.
After installation, verification and testing are critical to ensure that Refractory Anchors perform reliably under operational conditions. Initial inspections focus on alignment, tension, and overall stability of each anchor. Misaligned anchors or improper seating can compromise the refractory lining and lead to uneven stress distribution. Thermal cycling tests simulate operational conditions, checking how the anchors respond to repeated heating and cooling. Load-bearing assessments confirm that anchors maintain their integrity under mechanical stress from vibrations, material handling, and thermal expansion. Regular post-installation inspections are equally important, as they identify early signs of wear, corrosion, or displacement before they result in costly downtime. Implementing a structured verification and maintenance schedule helps prolong lining life, ensures worker safety, and maintains uninterrupted production.
Tip：Following proper installation procedures ensures Refractory Anchor systems perform optimally, reducing maintenance and production interruptions while maximizing equipment longevity.
Regular maintenance and inspection are critical to ensuring the longevity and performance of refractory anchors. Over time, high-temperature anchors, furnace anchors, and other refractory fasteners are subjected to thermal cycling, vibration, and chemical exposure, which can cause wear, deformation, or corrosion. Scheduling periodic inspections allows operators to detect early signs of anchor fatigue, misalignment, or coating damage before they compromise the refractory lining.
Visual inspections should include checking for cracks in bricks or castables, loosened anchors, and signs of corrosion on metal components. Non-destructive testing methods, such as ultrasonic or radiographic inspections, can identify hidden defects within the anchor or the surrounding lining. Additionally, thermal imaging can detect areas of heat loss, which may indicate compromised anchor integrity. Preventive maintenance may include retightening mechanical anchors, replacing damaged anchors, or recoating insulated anchors to restore thermal protection.
By implementing a structured inspection schedule, industrial operators in steel, cement, glass, and petrochemical plants can reduce unplanned downtime, extend lining life, and maintain operational safety. Well-maintained refractory anchors contribute to consistent furnace performance, energy efficiency, and lower lifecycle costs.
Industry | Typical Anchor Types | Key Benefits |
Steel & Metal | Welded, Corrugated | Stabilizes furnace linings, prevents cracks |
Cement & Glass | Corrugated, Expansion | Maintains lining integrity in rotating kilns |
Power Generation | High-temperature, Expansion | Secures boiler and reactor linings, reduces downtime |
Petrochemical & Chemical | Coated/Insulated | Resists chemical attack, maintains high-temperature stability |
Tip： Proper anchor selection tailored to each industry maximizes safety, efficiency, and longevity.
Choosing the correct temperature rating is critical for ensuring Refractory Anchor performance and lining integrity. Industrial furnaces, kilns, and reactors often operate at extreme temperatures, sometimes exceeding 1500°C. Anchors must be rated above the maximum expected operating temperature to prevent deformation, creep, or failure. A recommended safety margin of 10–20% further ensures reliability during unexpected thermal spikes or transient overheating events. High-temperature anchors and furnace anchors are specifically designed to maintain mechanical strength and adhesion under these conditions. Failure to consider temperature ratings can lead to cracking or detachment of refractory linings, causing unplanned downtime and costly repairs. Material selection must also align with temperature demands; stainless steel handles moderate heat, while high-nickel alloys or ceramic-coated anchors provide superior thermal resistance for ultra-high-temperature zones. Proper attention to temperature ensures both operational safety and longevity of the refractory system.
The mechanical load determines the anchor type and size for optimal performance. Refractory fasteners must withstand both static loads, such as the weight of bricks or castables, and dynamic forces caused by vibration, material handling, or thermal expansion. Selecting an anchor with insufficient tensile strength risks displacement, cracks, or complete failure of the lining. Conversely, oversizing anchors can increase costs unnecessarily without improving safety. Engineers must calculate the load distribution across the refractory lining and identify high-stress areas, such as furnace roofs or kiln walls, where stronger industrial anchors are required. Mechanical load considerations also affect anchor spacing and installation method. By matching anchor strength to operational loads, plants achieve improved lining stability, reduced maintenance frequency, and enhanced production continuity.
Material and coating selection is pivotal for both thermal and chemical protection. Stainless steel, high-alloy metals, and ceramic coatings offer various levels of heat and corrosion resistance. Ceramic-coated anchors reduce heat transfer to the supporting structure, minimizing thermal fatigue and prolonging anchor life. Alloy steel provides high mechanical strength and can withstand extreme thermal cycles. Coatings also protect against chemical attack from slag, acids, or aggressive gases common in steel, cement, or petrochemical industries. Selecting the appropriate combination ensures anchors maintain their properties over repeated thermal cycles and exposure to corrosive environments. Refractory fasteners with the correct material and coating selection directly contribute to long-term reliability, reduce unexpected downtime, and minimize replacement costs.
Anchor compatibility with lining materials is essential for installation effectiveness. Some anchors are designed for refractory bricks, while others suit castables or mixed linings. Using the wrong anchor type can compromise adhesion, prevent proper stress distribution, and lead to micro-cracks under thermal expansion. Corrugated or twisted anchors embed effectively in castables, while welded anchors perform best with brick linings in high-stress zones. Considering lining type during selection ensures proper anchor engagement and stable refractory performance throughout the operational life of the equipment. Compatibility also affects installation ease and reduces potential errors that could result in costly maintenance.
Compliance with recognized standards guarantees predictable anchor performance. ASTM, ISO, and MIL-Spec certifications indicate that anchors have undergone rigorous testing for mechanical strength, thermal resistance, and corrosion protection. Certified anchors reduce operational risk, meet regulatory requirements, and provide assurance of long-term reliability. For industrial operators, using certified Refractory Anchors simplifies quality control and facilitates procurement audits. Non-certified anchors may offer lower upfront cost but often result in premature failures and higher lifecycle expenses. Ensuring compliance protects personnel, equipment, and production efficiency while maintaining industry standards.
Tip：Purchasing anchors from trusted suppliers ensures Refractory Anchor reliability and long-term operational efficiency, reducing downtime and maintenance costs.
Jiangsu Leader Special Steel Products Co., Ltd. offers high-quality Refractory Anchor solutions. Their products provide reliable high-temperature performance, corrosion resistance, and mechanical strength. Proper installation and material selection ensure longer refractory life, reduced downtime, and enhanced safety across steel, cement, glass, and petrochemical industries. Investing in certified anchors supports operational efficiency and cost-effective maintenance.
A: They provide high-quality Refractory Anchors, including high-temperature anchors, furnace anchors, and refractory fasteners for industrial applications.
A: A Refractory Anchor secures high-temperature linings in furnaces, kilns, and reactors, ensuring durability and safety.
A: Their Refractory Anchors offer corrosion resistance, thermal stability, and mechanical strength for long-lasting industrial performance.
A: Yes, all industrial anchors meet ASTM, ISO, or MIL-Spec standards, ensuring reliable operation.
A: Consider operating temperature, mechanical load, lining type, and material. Jiangsu Leader provides guidance for optimal anchor selection.
