Nichrome alloy includes pure nickel, NiCr alloy, Fe-Cr-Al alloy and copper nickel alloy.
Nickel chrome alloys: Ni80Cr20, Ni70Cr30, Ni60Cr15, Ni35Cr20, Ni30Cr20, pure nickel Ni200 and Ni201
FeCrAl alloy: 0Cr25Al5, 0Cr23Al5, 0Cr21Al4, 0Cr27Al7Mo2, 0Cr21Al6Nb, 0Cr21Al6.
Copper nickel alloy: CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi23, CuNi30, CuNi44, Constantan,CuMn12Ni

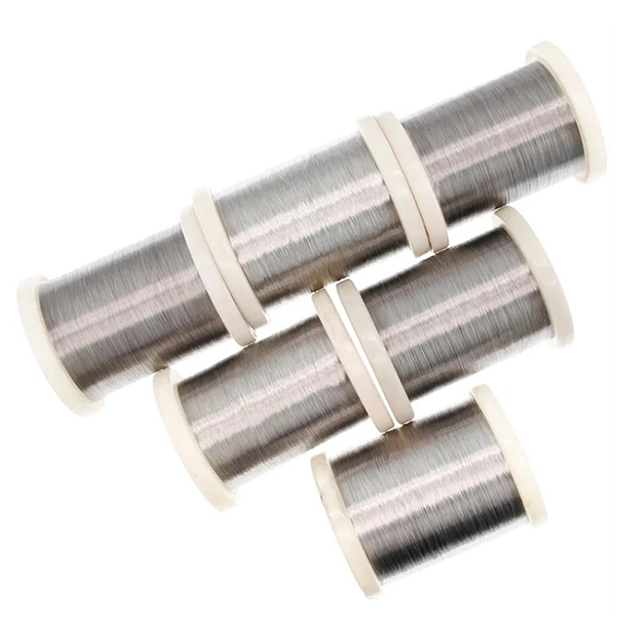

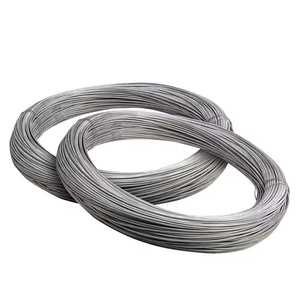

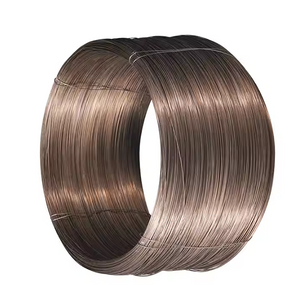

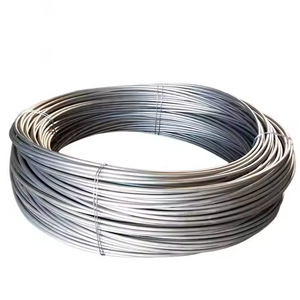

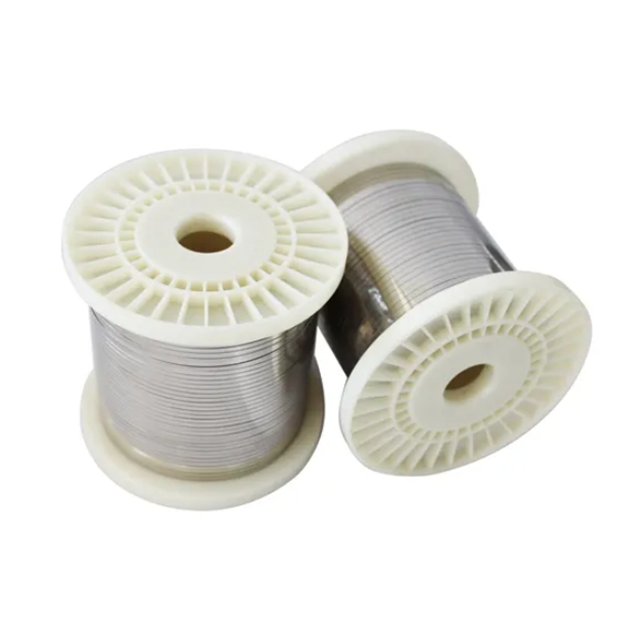

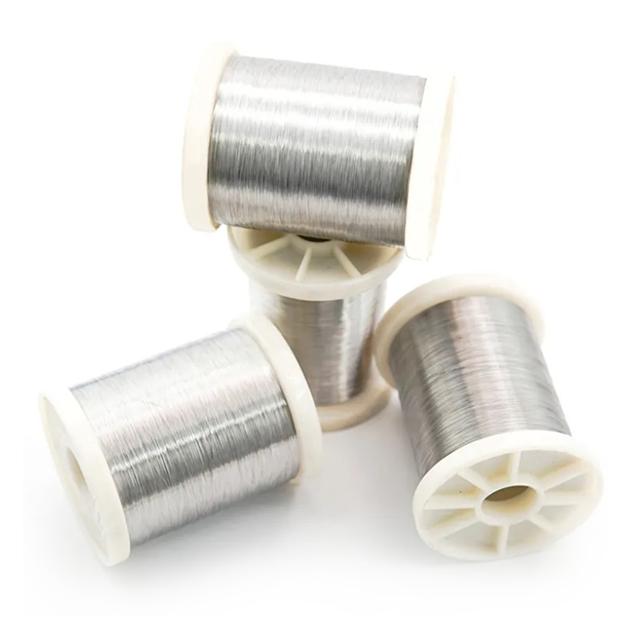

Our Nichrome alloy are in the form of wire, coil, ribbon, strip, foil.
Nichrome wire sizes are:
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
Nichrome: 80 20
Nichrome Grade: Ni70Cr30,Ni80Cr20, Ni60Cr15, Ni35Cr20, Ni30Cr20
NiCr 80/20 also called Chromel A, Cr20Ni80, N8, Nichrome V, HAI - NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Alloy A,
MWS-650, Stablohm 650, NCHW1
nicr8020 Characteristic:
Chemical Content %: 80.00 Nickel, 20.00 Chrome
Max continuous service temperature: 1200ºC
Resisivity: 1.09 mm2Ω /m
Density: 8.4g/cm3
Thermal conductivity: 60.3kj/mhc
Coefficient of thermal expansion: 18*10-6/c
Melting point: 1400ºC
Elongation: Min 20%
Austenite: Nonmagnetic
Performance\ material | Cr10Ni90 | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Composition | Ni | 90 | Rest | Rest | 55.0~61.0 | 34.0~37.0 | 30.0~34.0 |
Cr | 10 | 20.0~23.0 | 28.0~31.0 | 15.0~18.0 | 18.0~21.0 | 18.0~21.0 | |
Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | ||
Maximum temperature℃ | 1300 | 1200 | 1250 | 1150 | 1100 | 1100 | |
Meltiing point ℃ | 1400 | 1400 | 1380 | 1390 | 1390 | 1390 | |
Density g/cm3 | 8.7 | 8.4 | 8.1 | 8.2 | 7.9 | 7.9 | |
Resistivity at 20℃((μΩ·m) | 1.09±0.05 | 1.18±0.05 | 1.12±0.05 | 1.00±0.05 | 1.04±0.05 | ||
Elongation at rupture | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | ≥20 | |
Specific heat J/g.℃ | 0.44 | 0.461 | 0.494 | 0.5 | 0.5 | ||
Thermal conductivity KJ/m.h℃ | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | ||
Coefficient of lines expansion a×10-6/ (20~1000℃) |
18 |
17 |
17 |
19 |
19 | ||
Micrographic structure | Austenite | Austenite | Austenite | Austenite | Austenite | ||
Magnetic properties | Non-magnetic | Non-magnetic | Non-magnetic | Weak magnetic | Weak magnetic | ||
Shape | Size(mm) |
Wire | 0.05-7.5 |
Rod | 8-50 |
Ribbon | (0.05-0.35)*(0.5-6.0) |
Strip | (0.5-2.5)*(5-40) |
